Transmission Identification Information

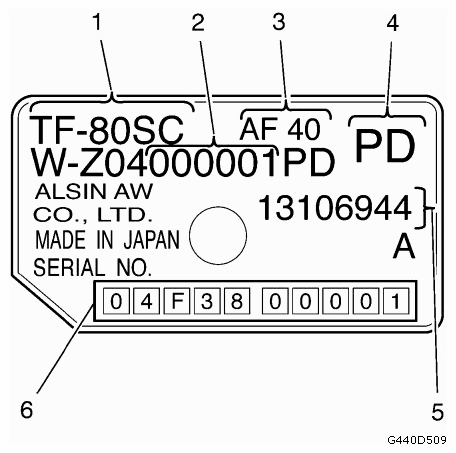

Fig 1: Identifying Transmission Identification Information Label
G09435368Courtesy of SAAB-SCANIA OF AMERICA, INC.

For automatic transmission AF40, the identification plate is on the top of the transmission housing.

Position Data
1 Aisin Warner transmission type
2 Fabrication line 1 = 000001 - 500000 Fabrication line 2 = 500001 - 999999
3 Transmission type (AF40)
4 Model code
5 GM parts number
6 Production serial number
04 = Year of production (2004)
F = Month of production
  • A: January
  • B: February
  • C: March
  • D: April
  • E: May
  • F: June
  • G: July
  • H: August
  • J: September
  • K: October
  • L: November
  • M: December

38 = Model Designation
00001 = Production Serial Number
