Locating Bushing Installation

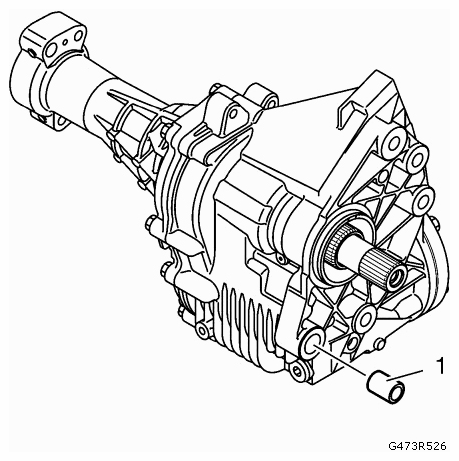

Fig 1: Identifying Transfer Case Locating Bushing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the transfer case locating bushing (1), as required using a rubber mallet.
