Rear Extension Locating Pin Installation

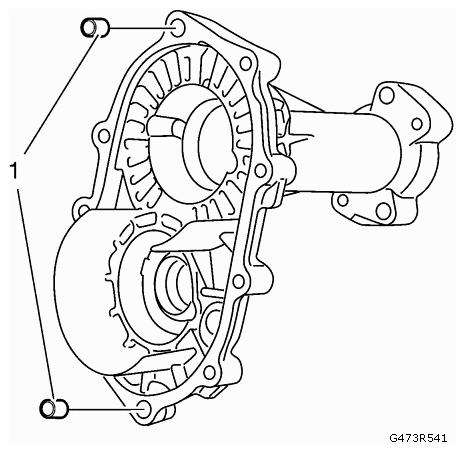

Fig 1: Identifying Transfer Case Rear Extension Locating Pins

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the transfer case rear extension locating pins (1), using a rubber mallet.
