Connector H18-1

Location:  in front roof lamp unit

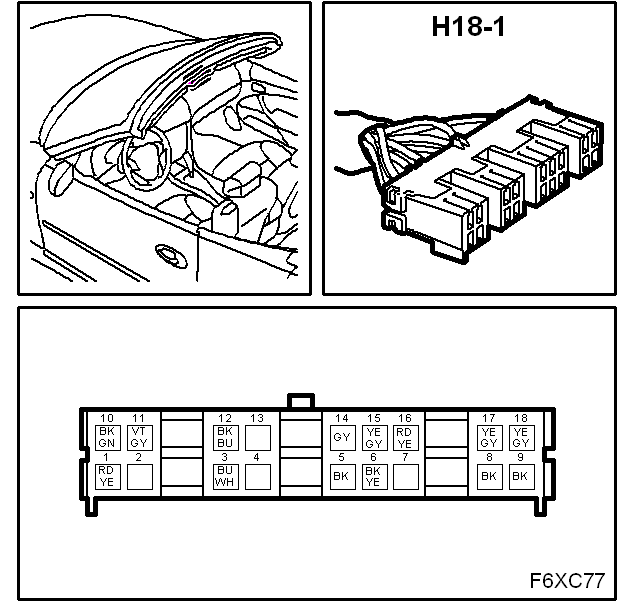

Fig 1: Identifying Connector H18-1
G05054519Courtesy of SAAB-SCANIA OF AMERICA, INC.
