Connector H8-12

Location:  on the side under the right-hand D-pillar closest to the tailgate

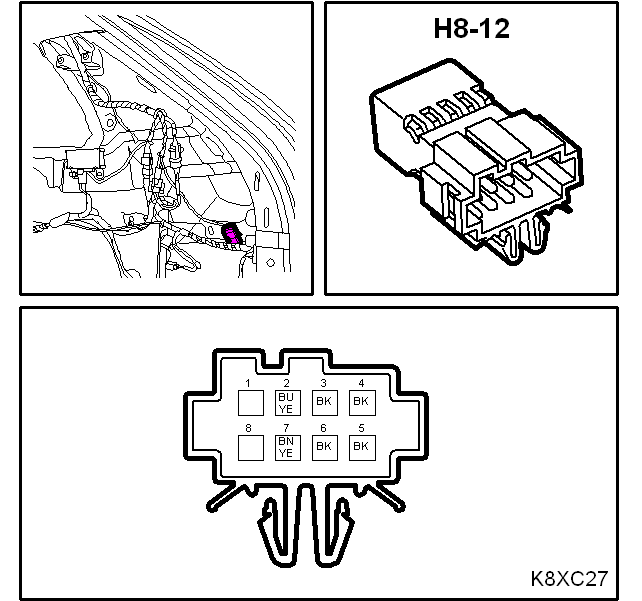

Fig 1: Identifying Connector H8-12
G05054513Courtesy of SAAB-SCANIA OF AMERICA, INC.
