Grounding point G43: Notes

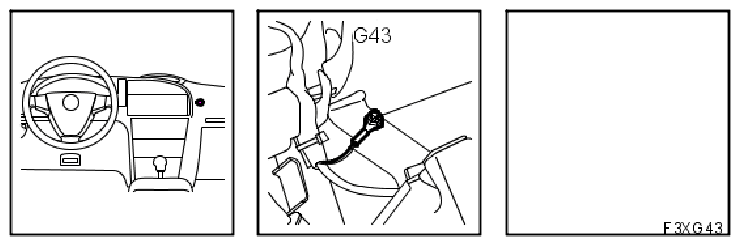

Fig 1: Identifying Grounding Point G43

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On right-hand side of knee member

The grounding point is connected with grounding point G34S via crimps J80 and J108.
