Brake light switch (29), T8: Connection

PIN SIGNAL DESCRIPTION CHART

Pin No. Signal type Description
1 +30 Power supply from fuse 6.
2 Signal The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 14(A).

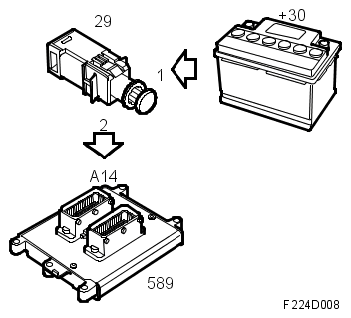

Fig 1: Brake Light Switch (29), T8 - Communication Diagram
G06230489Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: Brake Light Switch (29), T8 - Circuit Diagram
G06230490Courtesy of SAAB-SCANIA OF AMERICA, INC.
