To remove

Remove the upper engine cover.

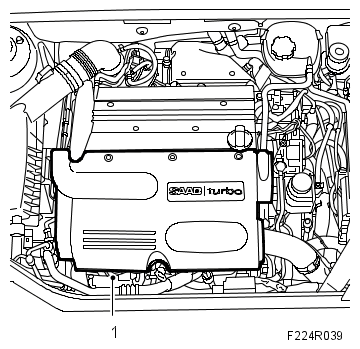

Fig 1: Identifying Upper Engine Cover
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Carefully press down the catch with a screwdriver and unplug the connector.

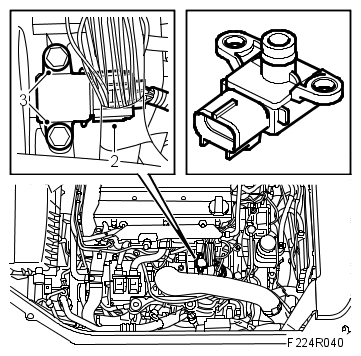

Fig 2: Illustration For Steps 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the sensor.
