To remove

  1. Remove the cover over the ignition coils.

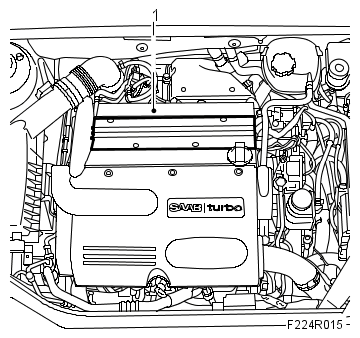

    Fig 1: Identifying Ignition Coils Cover
    G06230330Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the bolts, lift up each ignition coil and move aside. Start with the ignition coil for cylinder 1.

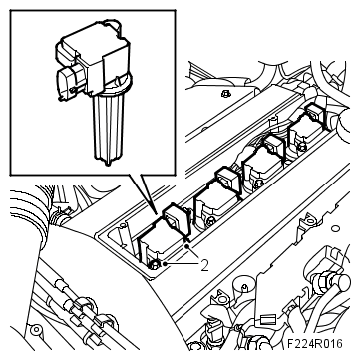

    Fig 2: Identifying Ignition Coil And Bolts
    G06230331Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the spark plugs, socket 8394785.
