To remove

  1. Unplug the oxygen sensor and carefully lower the cable.

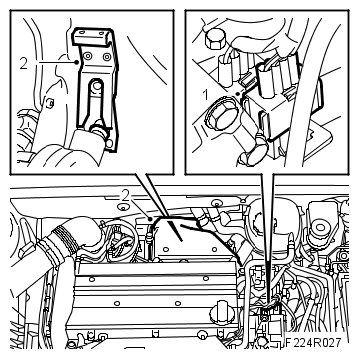

    Fig 1: Illustration For Steps 1-2
    G06230303Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the heat shield over the turbocharger (note the clip underneath the heat shield, see TURBOCHARGER SYSTEM, 4-CYLINDER .
  3. Remove the oxygen sensor.

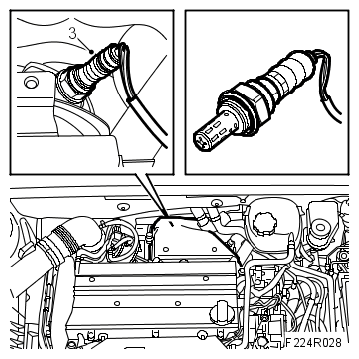

    Fig 2: Identifying Oxygen Sensor
    G06230304Courtesy of SAAB-SCANIA OF AMERICA, INC.
