Connector H10-5

Location:  blue connector in a plastic box on the beam on the right-hand side of the fuel tank

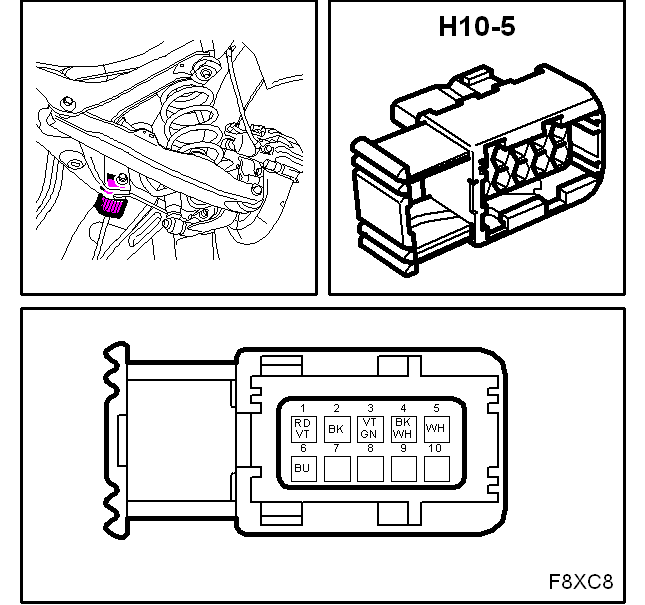

Fig 1: Identifying Connector H10-5
G05570699Courtesy of SAAB-SCANIA OF AMERICA, INC.
