Connector H8-7

Location:  grey connector on the side panel between the REC and the wheel housing

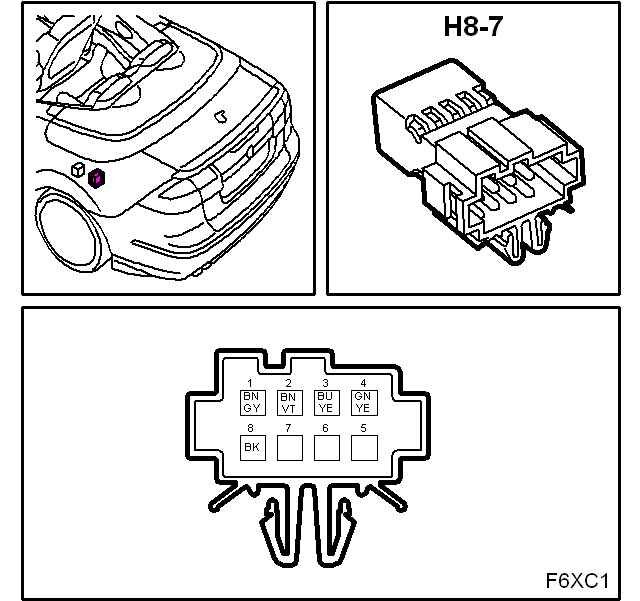

Fig 1: Identifying Connector H8-7
G05054512Courtesy of SAAB-SCANIA OF AMERICA, INC.
