To fit
WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

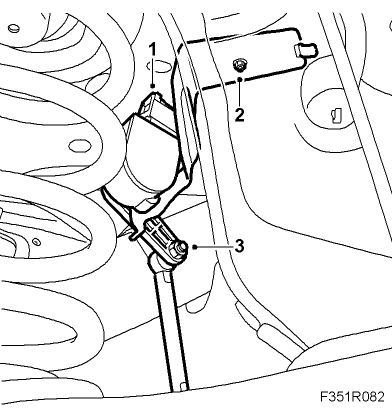

- Plug in the connector.
- Refit console with sensor.
Tightening torque up to and including M06 8 Nm (6 lbf ft)
Tightening torque from and including M07 10 Nm (7 lbf ft)
- Refit upper ball section in link arm.
- Carry out AHL control module calibration .
