Driver or Passenger Seat Adjuster Memory Module Replacement

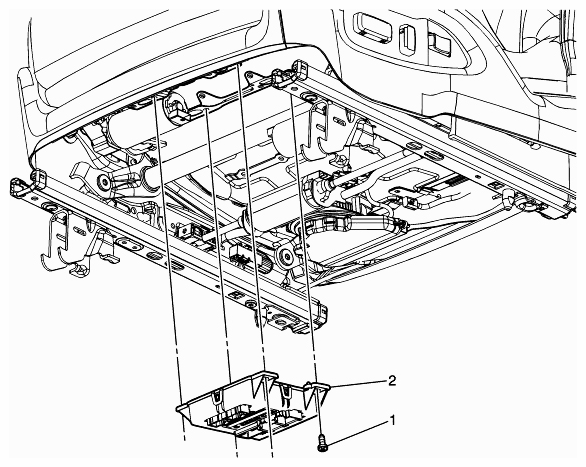

Fig 1: Identifying Driver/Passenger Seat Adjuster Memory Module And Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the front seat. Refer to DRIVER OR PASSENGER SEAT REPLACEMENT .
1	Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 4) Refer to CAUTION: RETAINER . Tighten  4 Nm(35 lb in)
2	Driver or Passenger Seat Adjuster Memory Module Procedure  Disconnect the electrical connectors. Remove the module from the adjuster memory and wiring harness brackets. Refer to CONTROL MODULE REFERENCES for programing and setup information.
