Battery Positive Fuse Block Cable Replacement

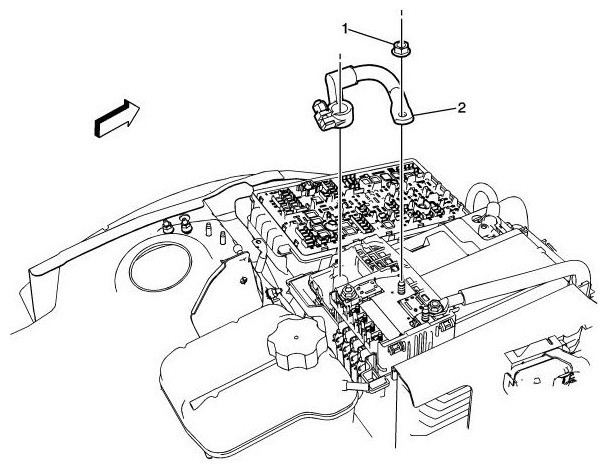

Fig 1: Removing Battery Positive Fuse Block Cable
G09401770Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
  2. Open the battery fuse block cover.
  3. Remove the battery positive fuse block cable.
1 Nut
Refer to CAUTION: RETAINER .
Tighten
12 Nm (106 lb in)
2 Battery Positive Fuse Block Cable
