Reading Lamp Switch Pushbutton Replacement

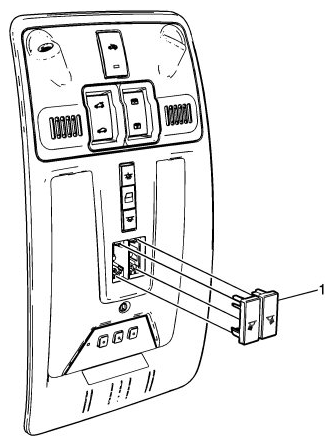

Fig 1: Removing Reading Lamp Switch Pushbutton
G09401805Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the roof console. Refer to ROOF CONSOLE REPLACEMENT .
1 Reading Lamp Switch Pushbutton
Procedure
Press tabs together and remove switch.
