Transmission Control Position Indicator Lamp Replacement

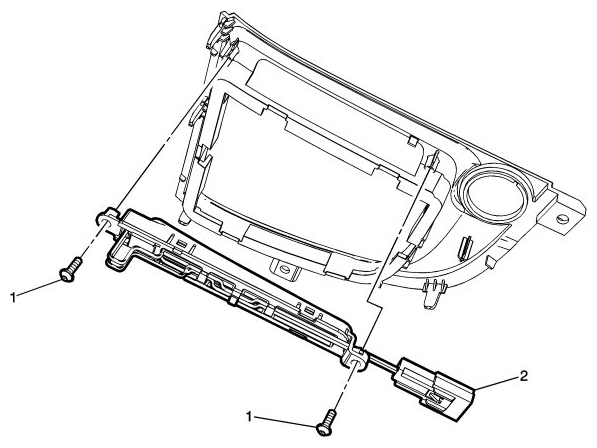

Fig 1: Transmission Control Position Indicator Lamp
G09401812Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the front floor console trim plate.
1 Transmission Control Position Indicator Lamp Bolts (Qty: 2)
Refer to CAUTION: RETAINER
2 Transmission Control Position Indicator Lamp
Procedure
Disconnect the electrical connector.
