Fuel Pressure Sensor Replacement - Fuel Injection Fuel Rail

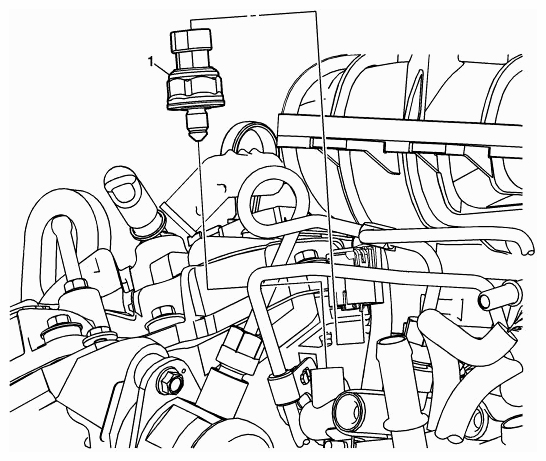

Fig 1: Identifying Fuel Injection Fuel Rail Fuel Pressure Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures
Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement .
1	Fuel Injection Fuel Rail Fuel Pressure Sensor Refer to CAUTION: RETAINER Tighten 33 Nm (25 lb ft)
