Steering angle sensor replacement

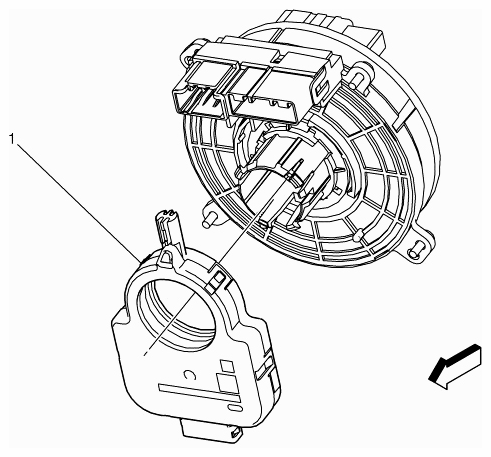

Fig 1: Identifying Steering Angle Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures Remove the steering wheel inflatable restraint module coil. Refer to STEERING WHEEL INFLATABLE RESTRAINT MODULE COIL REPLACEMENT .
1	Steering Angle Sensor Procedure Press in the clip on the steering wheel inflatable restraint module coil in order to remove the sensor. After installation, center the steering angle sensor. Refer to STEERING ANGLE SENSOR CENTERING .
