Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment1. Ensure that the steering wheel is set in a straight ahead position.

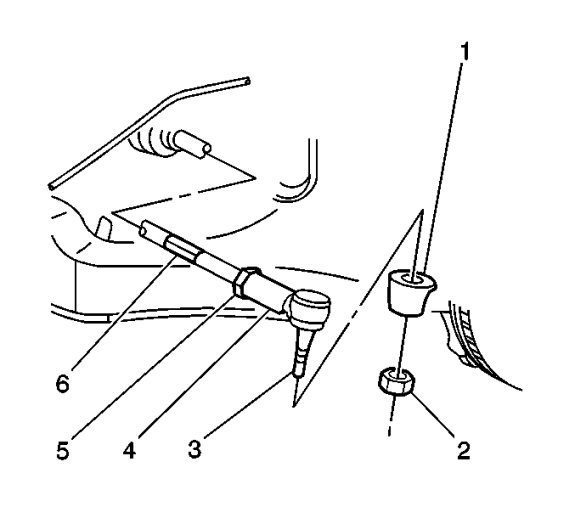

2. Loosen the tie rod jam nut (5).
3. Adjust the toe to specification by turning the adjuster (6).
Refer to Fastener Caution.
4. Install the tie rod jam nut (5) and tighten to 68 Nm (50 lb ft).
