Balancer Chain Adjust Guide Replacement

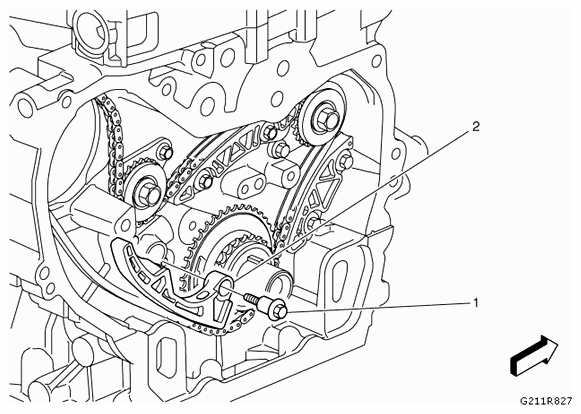

Fig 1: Removing Balancer Chain Adjust Guide
G09406965Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the water pump and balance shaft chain tensioner. Refer to WATER PUMP AND BALANCE SHAFT CHAIN TENSIONER REPLACEMENT .
1 Balancer Chain Adjustable Guide Fastener
Refer to FASTENER CAUTION .
Procedure
Always install the fasteners with LOCTITE.
Tighten
10 Nm (89 lb in)
2 Balancer Chain Adjustable Guide
