Balancer Chain Guide Replacement - Lower

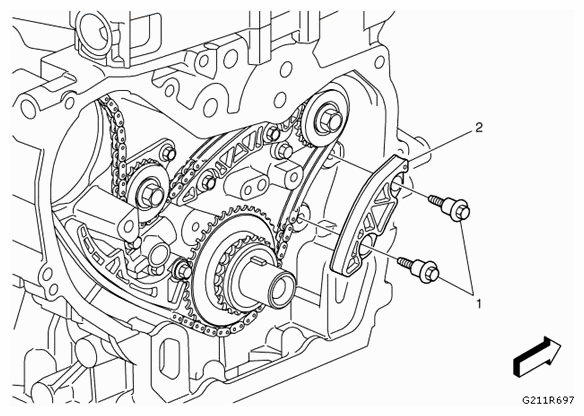

Fig 1: Removing Balancer Chain Guide
G09406966Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the balancer chain guide - upper. Refer to BALANCER CHAIN GUIDE REPLACEMENT - UPPER .
1 Balancer Chain Guide Fastener (Qty: 2)
Refer to FASTENER CAUTION .
Procedure
Always install the fasteners with LOCTITE.
Tighten
12 Nm (106 lb in)
2 Balancer Chain Guide
