Engine Sight Shield Replacement

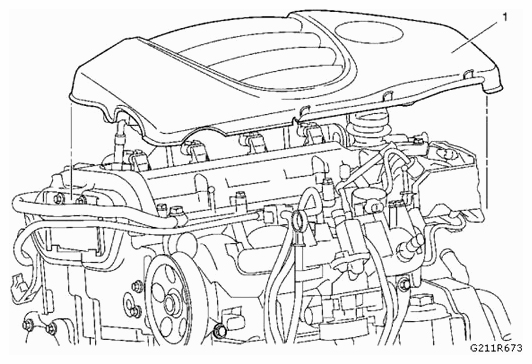

Fig 1: Identifying Engine Sight Shield
G09406951Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Engine Sight Shield
Procedure
Lift the engine sight shield.
