Shift Lock Control: Notes

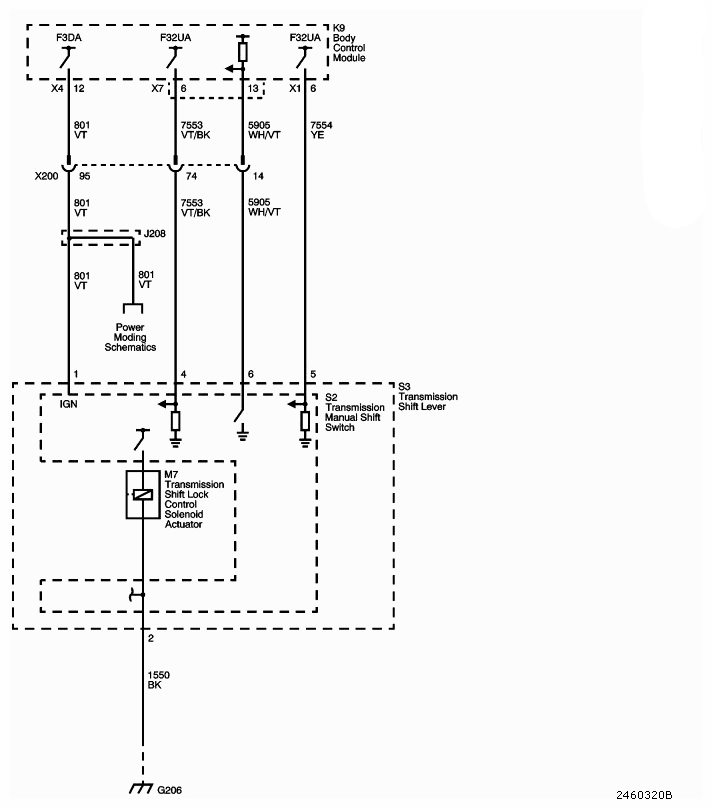

Fig 1: Shift Lock Control - Circuit Diagram
G09435507Courtesy of SAAB-SCANIA OF AMERICA, INC.
