Fill Plug Installation

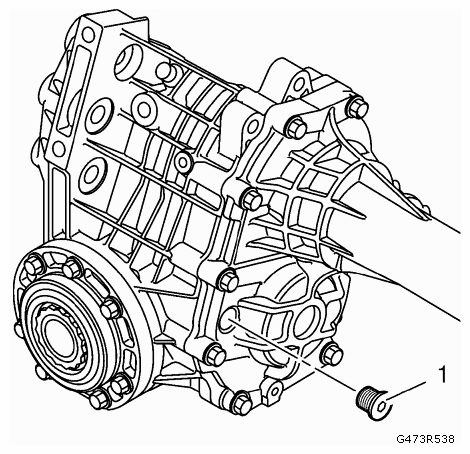

Fig 1: Identifying Transfer Case Filler Plug

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Refer to FASTENER CAUTION .

Install a NEW transfer case filler plug (1) and a NEW seal and tighten to 50 Nm (37 lb ft)  .
