Removal Procedure

  1. Remove the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
  2. Manual transmission: Drain the transmission fluid. Refer to TRANSMISSION FLUID REPLACEMENT .
  3. Automatic transmission: Drain the transmission fluid. Refer to TRANSMISSION FLUID LEVEL AND CONDITION CHECK .
  4. Release the right drive shaft. Refer to FRONT WHEEL DRIVE SHAFT REPLACEMENT - RIGHT SIDE (GNB) or FRONT WHEEL DRIVE SHAFT REPLACEMENT - RIGHT SIDE (PETROL) .
  5. Remove the front wheelhouse front liner. Refer to FRONT WHEELHOUSE FRONT LINER REPLACEMENT .
  6. Remove the subframe. Refer to SUBFRAME, REPLACE (GNA) or SUBFRAME, REPLACE (GNB)
  7. Remove the transmission rear mount bracket. Refer to TRANSMISSION REAR MOUNT REPLACEMENT (A/T) or TRANSMISSION REAR MOUNT REPLACEMENT (F40)
  8. Remove the bleed hose, if equipped.
  9. Remove the support bracket fasteners (1).

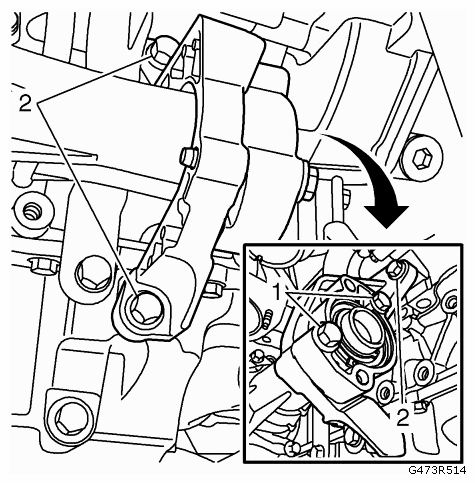

    Fig 1: Identifying Support Bracket Fasteners
    G09437260Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Remove the support bracket to engine fasteners (2).
  11. Support the transfer case with a column jack, and secure with cable ties.
  12. Remove the transfer case fasteners (3) using special socket  DT-48783.

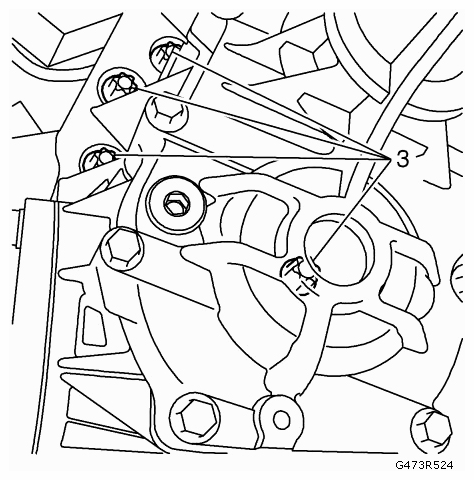

    Fig 2: Identifying Transfer Case Fasteners
    G09437261Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Lower and ease out the transfer case.
