Lower Intake Manifold Replacement

WARNING: This page is about a different variant/trim than selected.

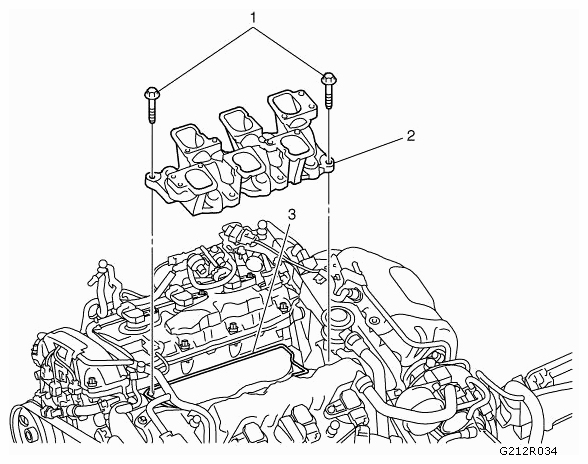

Fig 1: Identifying Lower Intake Manifold, Gasket And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the injectors. Refer to FUEL INJECTOR REPLACEMENT .
1	Lower Intake Manifold Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten 23 Nm (17 lb ft)
2	Lower Intake Manifold
3	Lower Intake Manifold Gasket
