Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Install the primary upper timing chain guide (1). Refer to PRIMARY TIMING CHAIN GUIDE INSTALLATION - UPPER .

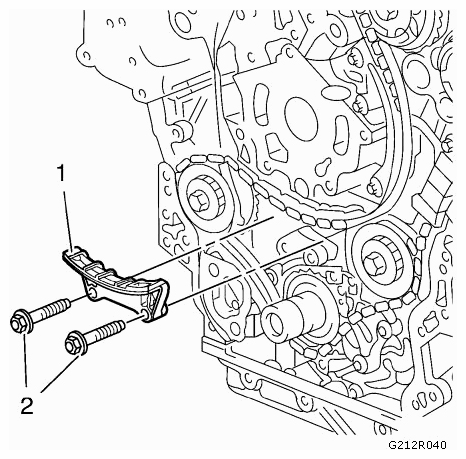

Fig 1: Identifying Primary Upper Timing Chain Guide And Mounting Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the primary timing chain tensioner. Refer to PRIMARY TIMING CHAIN TENSIONER INSTALLATION .
Install the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .
