Diagnostic Aids
Problem is intermittent at this time. Check all terminals, connections and harness for possible loose or corroded condition. The PCM is protected from damage by internal circuit design.

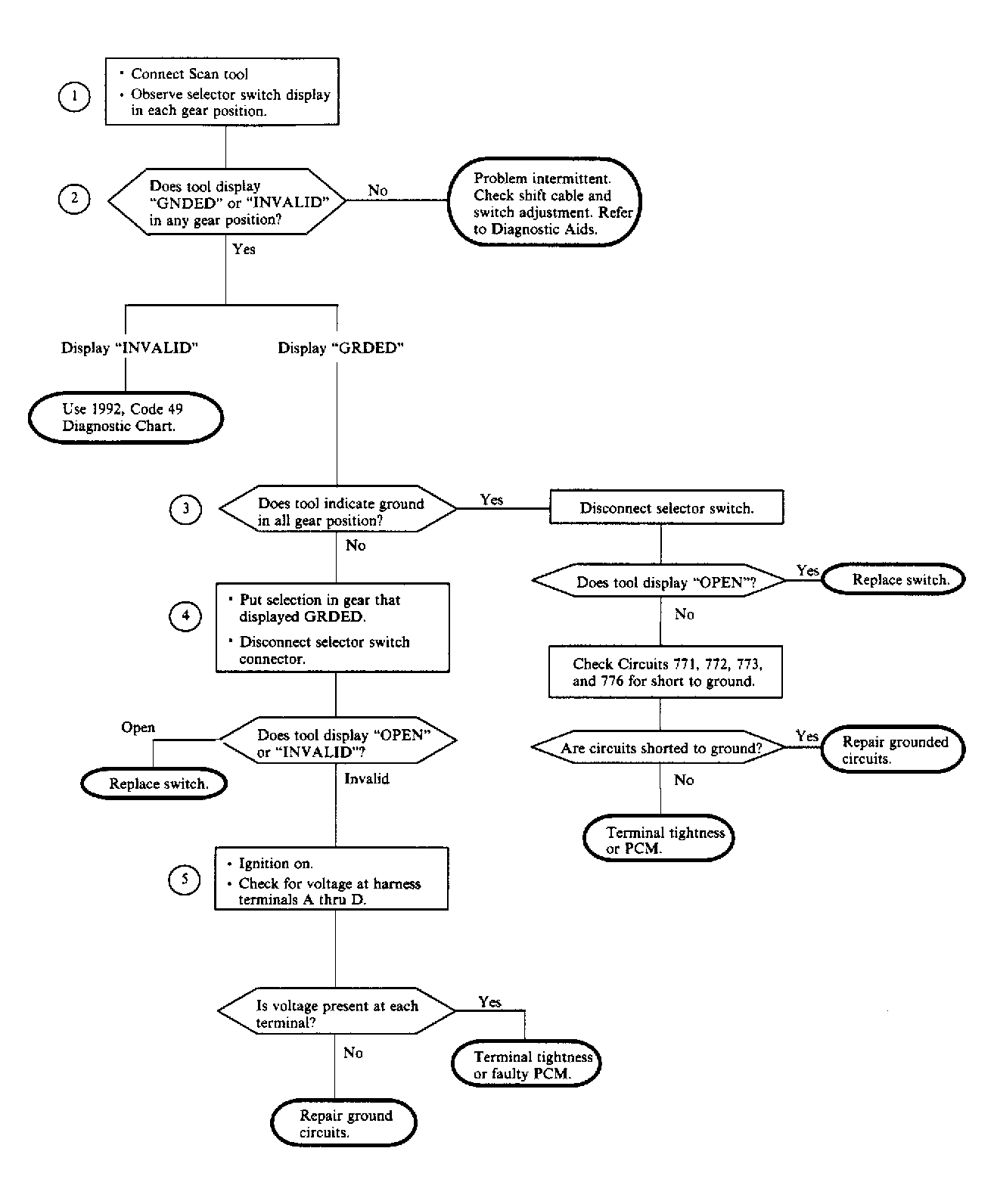

SELECTOR SWITCH POSITION (CODE 46)
| Gear Selected | Selector Switch Terminals |
|---|---|
| "P" | "A" & "D" |
| "R" | "A" & "B" |
| "N" | "B" & "D" |
| "D4" | "B" & "C" |
| "D3" | "C" & "D" |
| "D2" | "A" & "C" |
