Cruise Control Systems: Wiring Diagram

For 1992 wiring diagrams, see appropriate chassis wiring diagram in WIRING DIAGRAMS section.

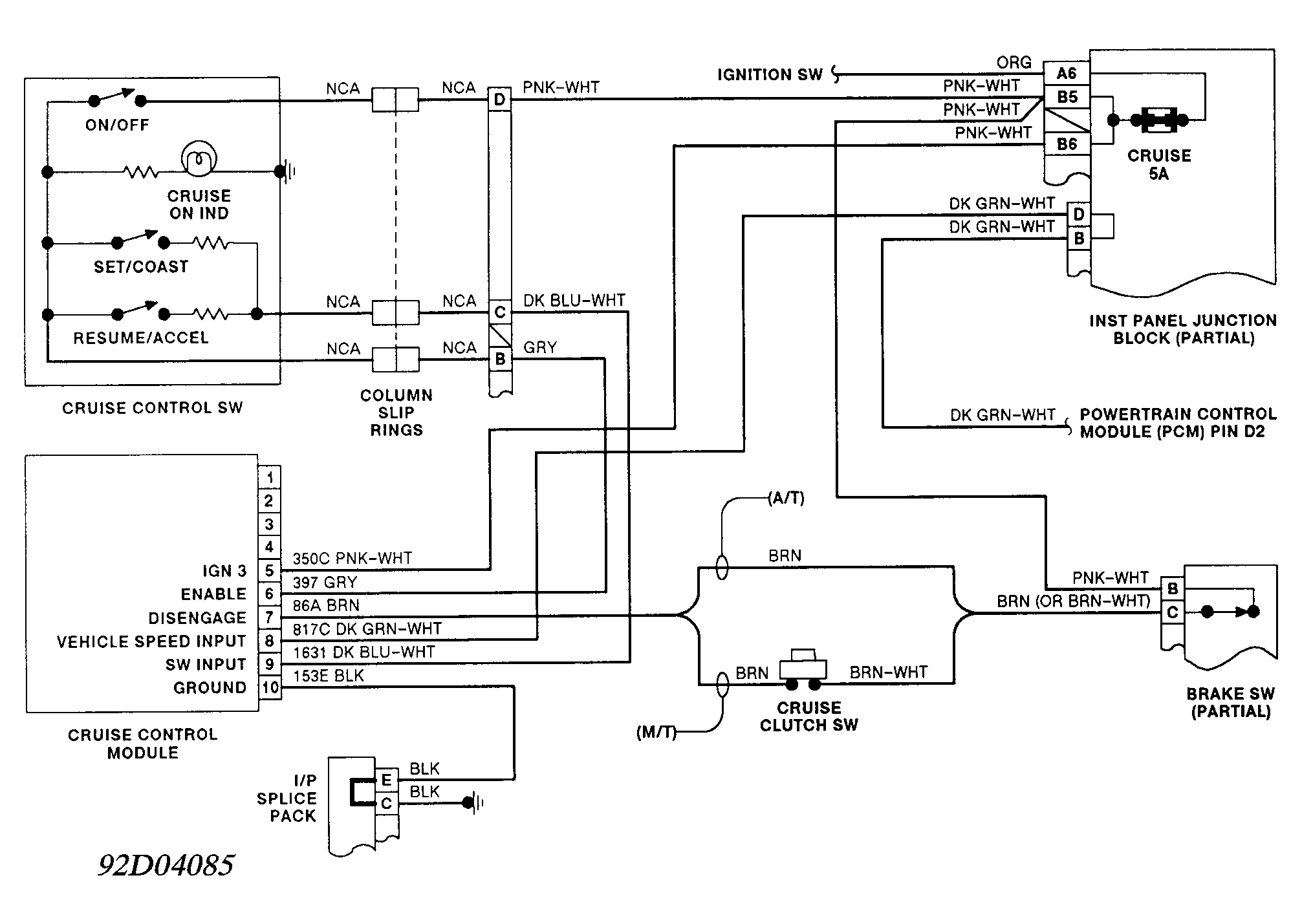

Fig 1: Cruise Control System Wiring Diagram (1991 Saturn)
G92D04085
