Diagnostic Aids

Checking malfunction history on "Scan" tester may help determine cause of intermittent code. Check tightness of all terminals and connectors.

Fig 1: Code 19, Schematic, 6X Signal Fault
G92D04636

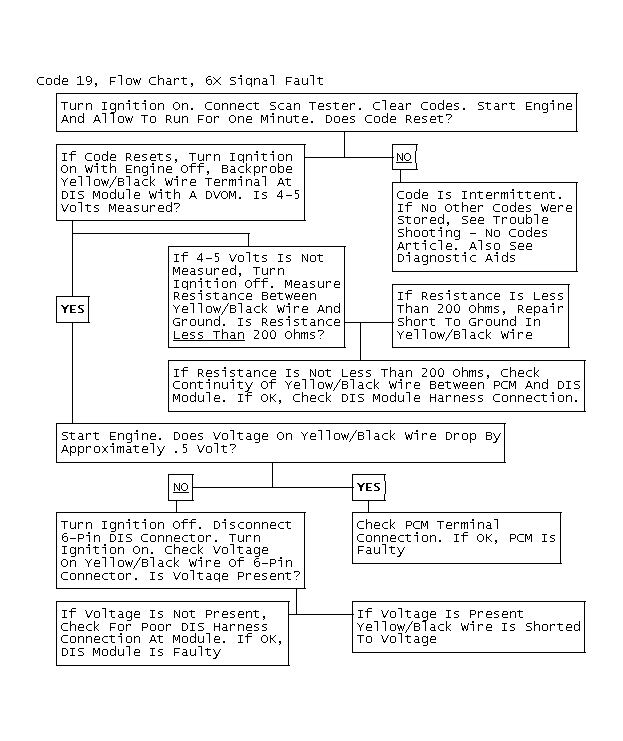

Fig 2: Code 19, Flow Chart, 6X Signal Fault
GB0021105
