Dimension & Clearance Specifications - Engine

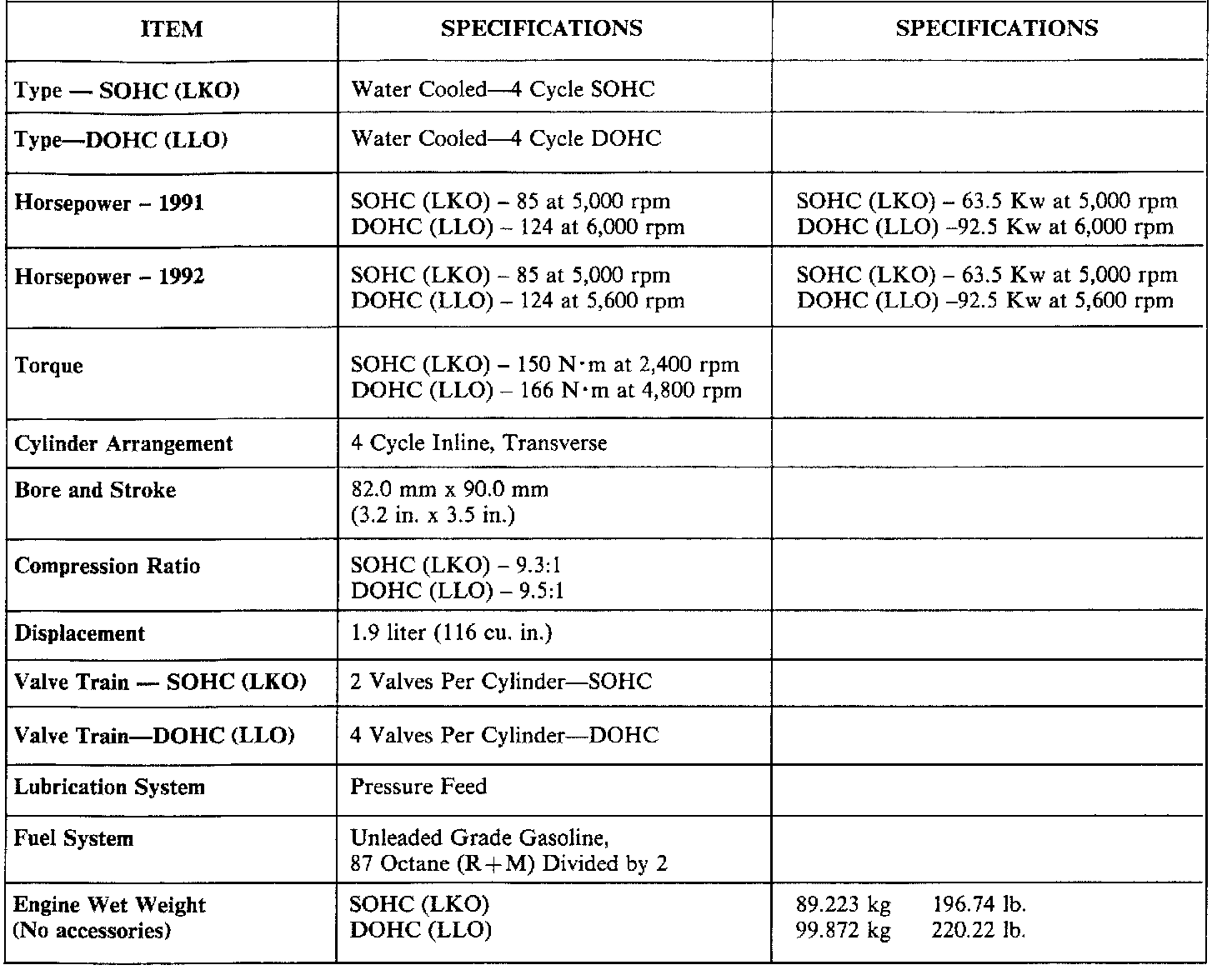

Design Specifications:

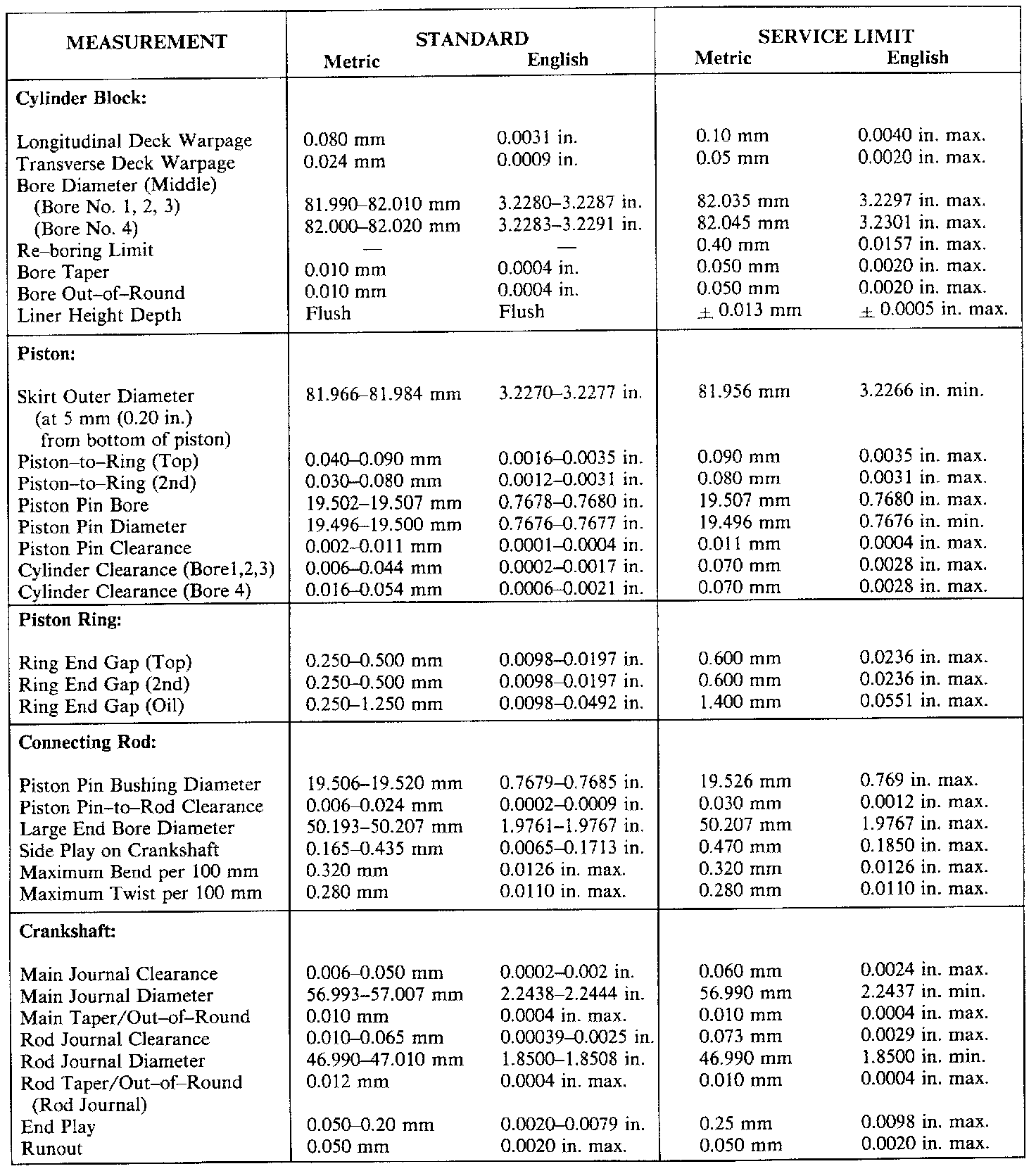

Engine Block:

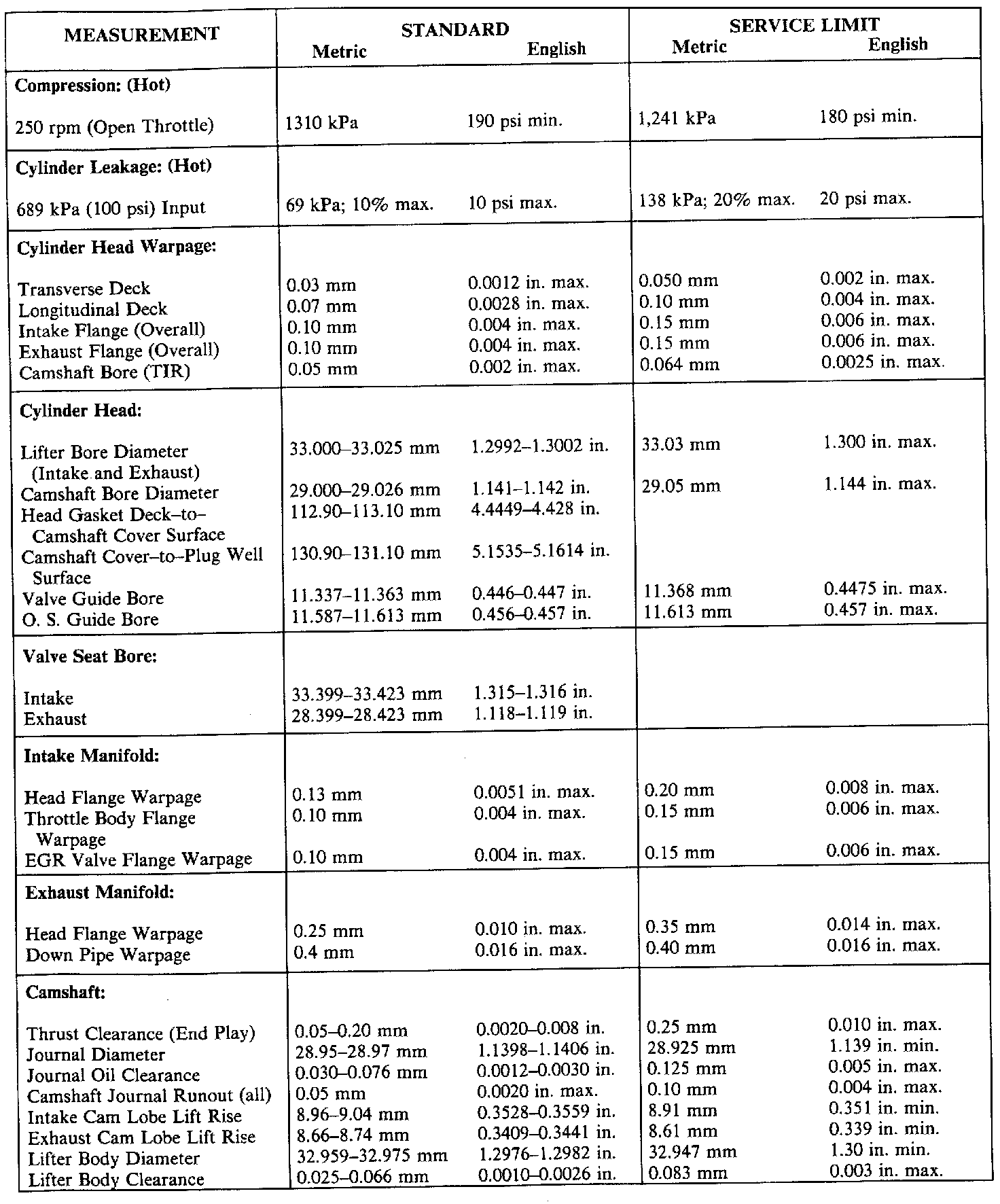

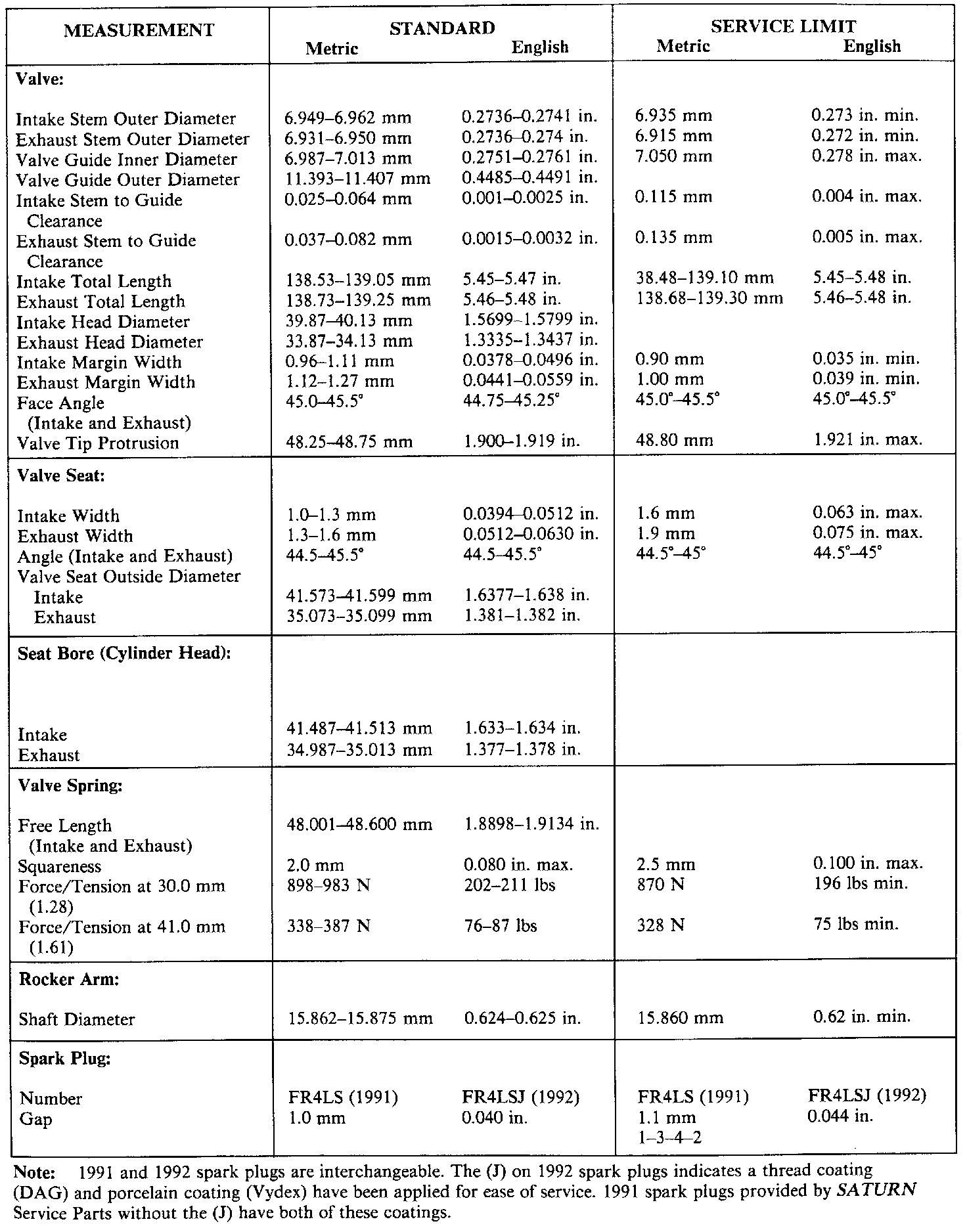

Cylinder Head (SOHC):

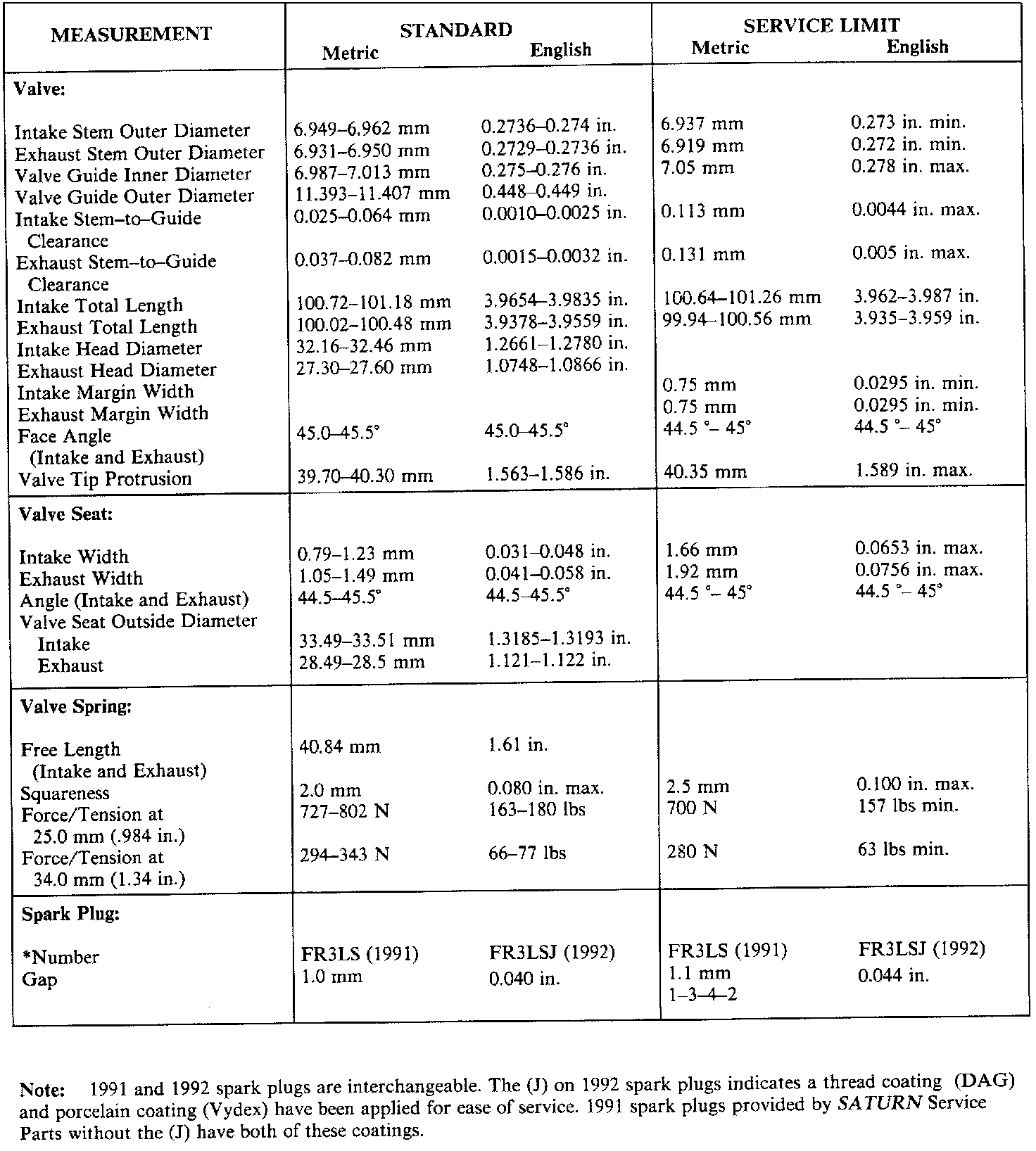

Cylinder Head (SOHC Cont'd):

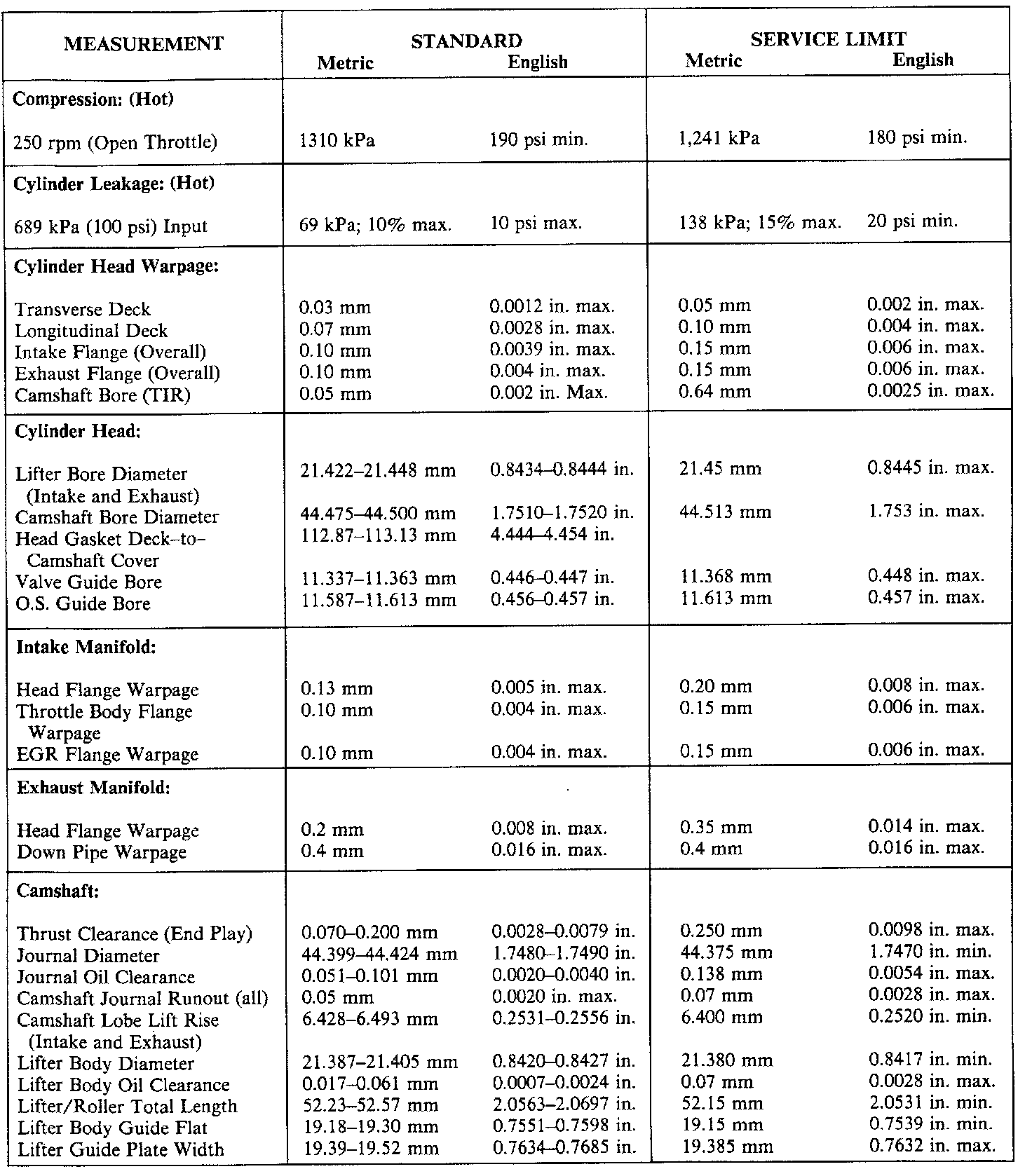

Cylinder Head (DOHC):

Cylinder Head (DOHC Cont'd):

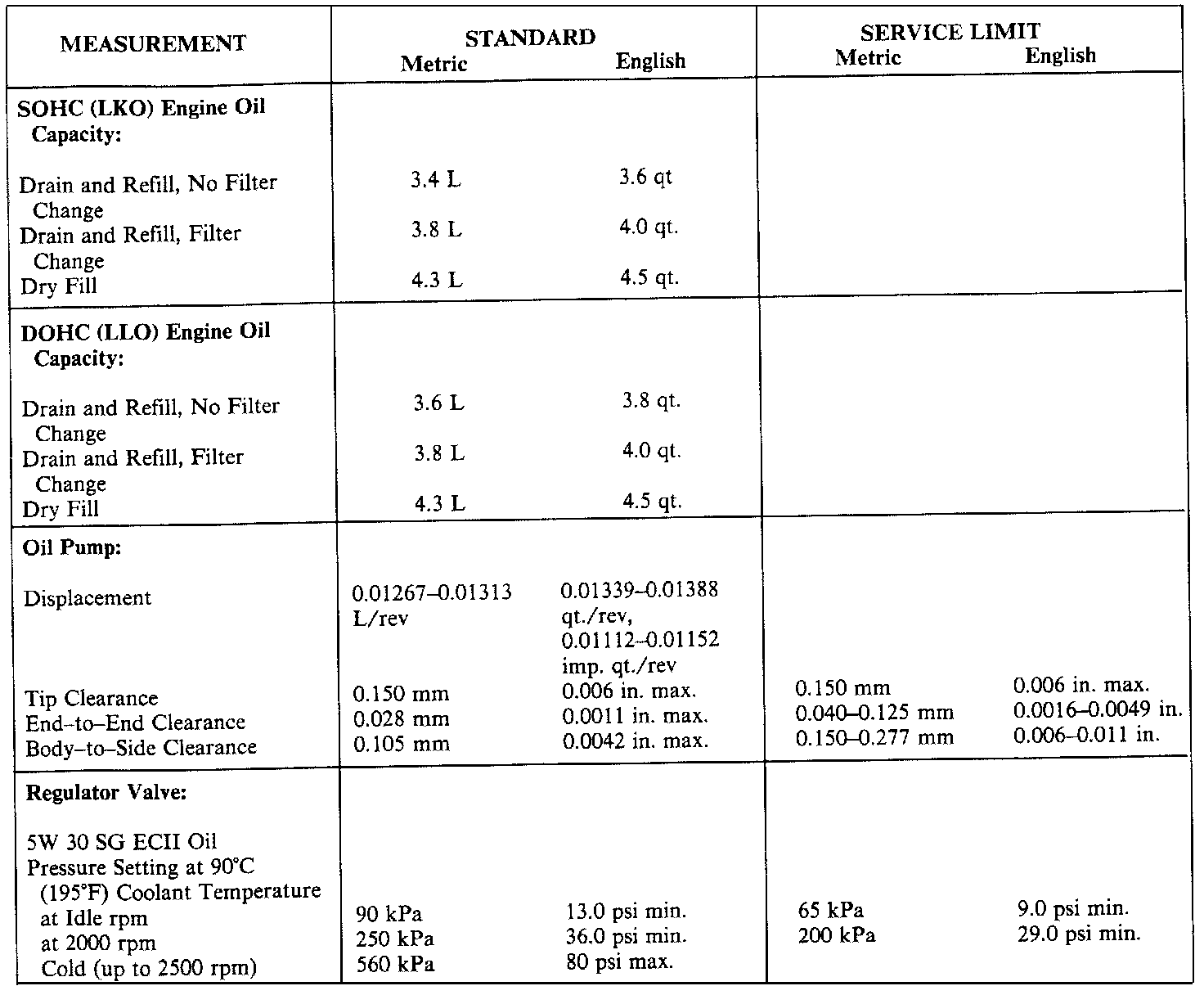

Engine Lubrication:

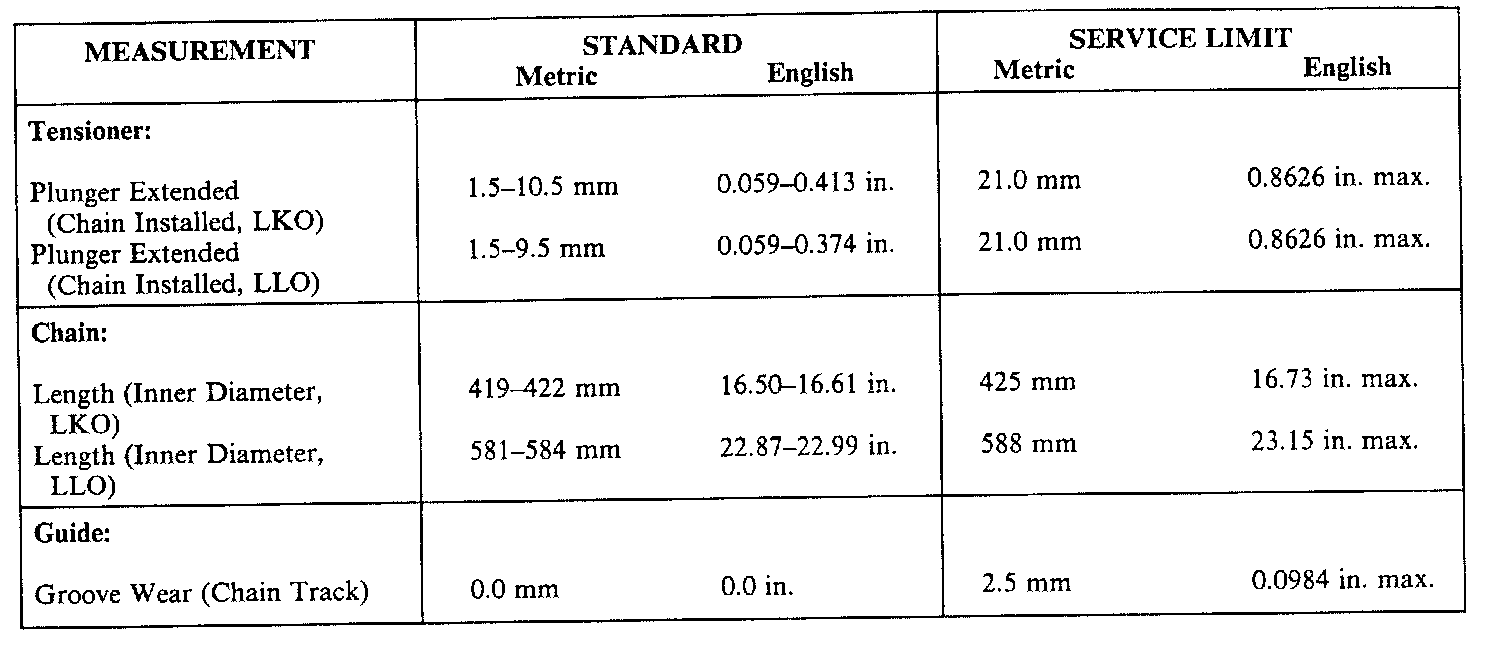

Camshaft Drive System:

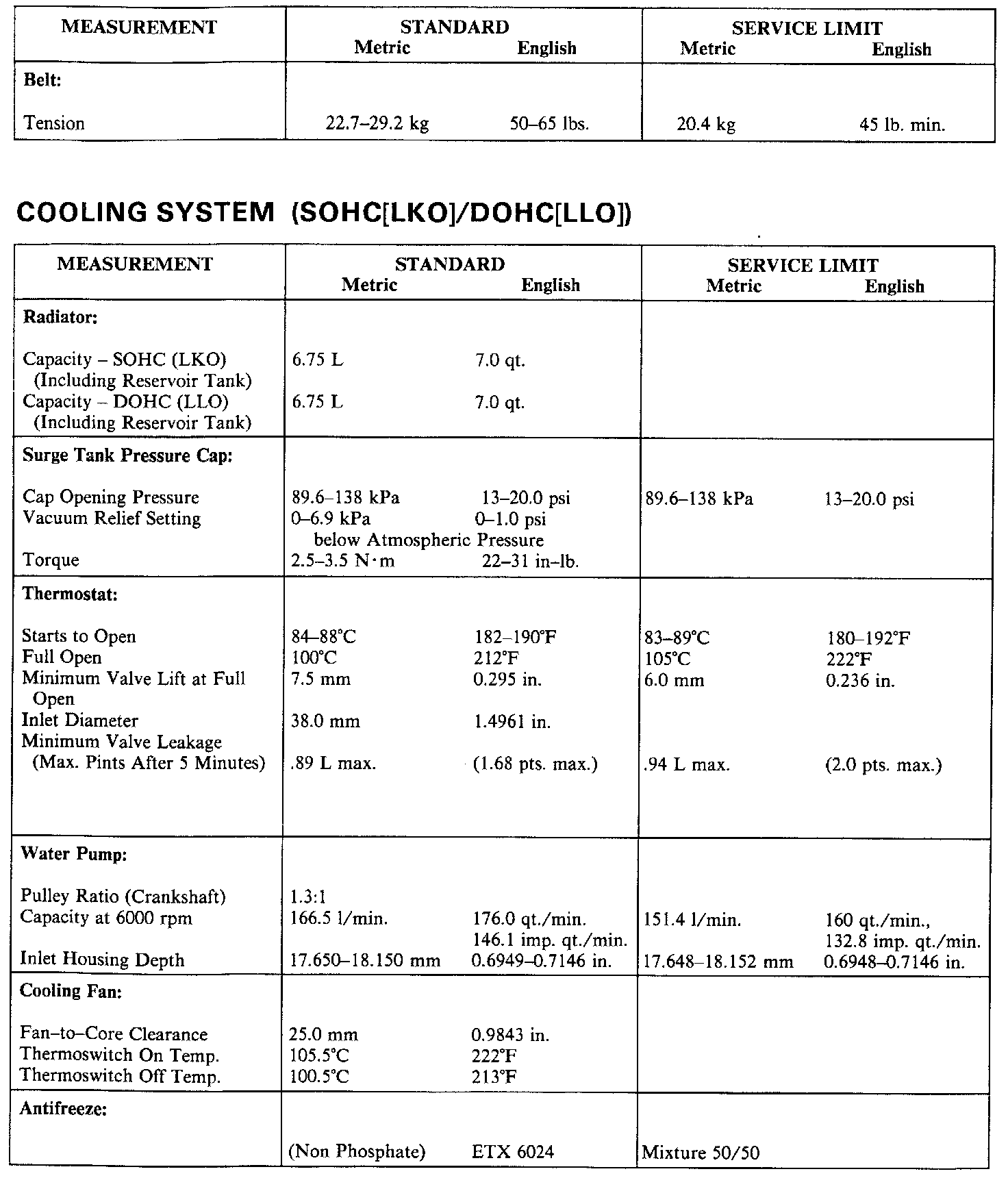

Accessory Drive Belt/Tensioner/Cooling System:

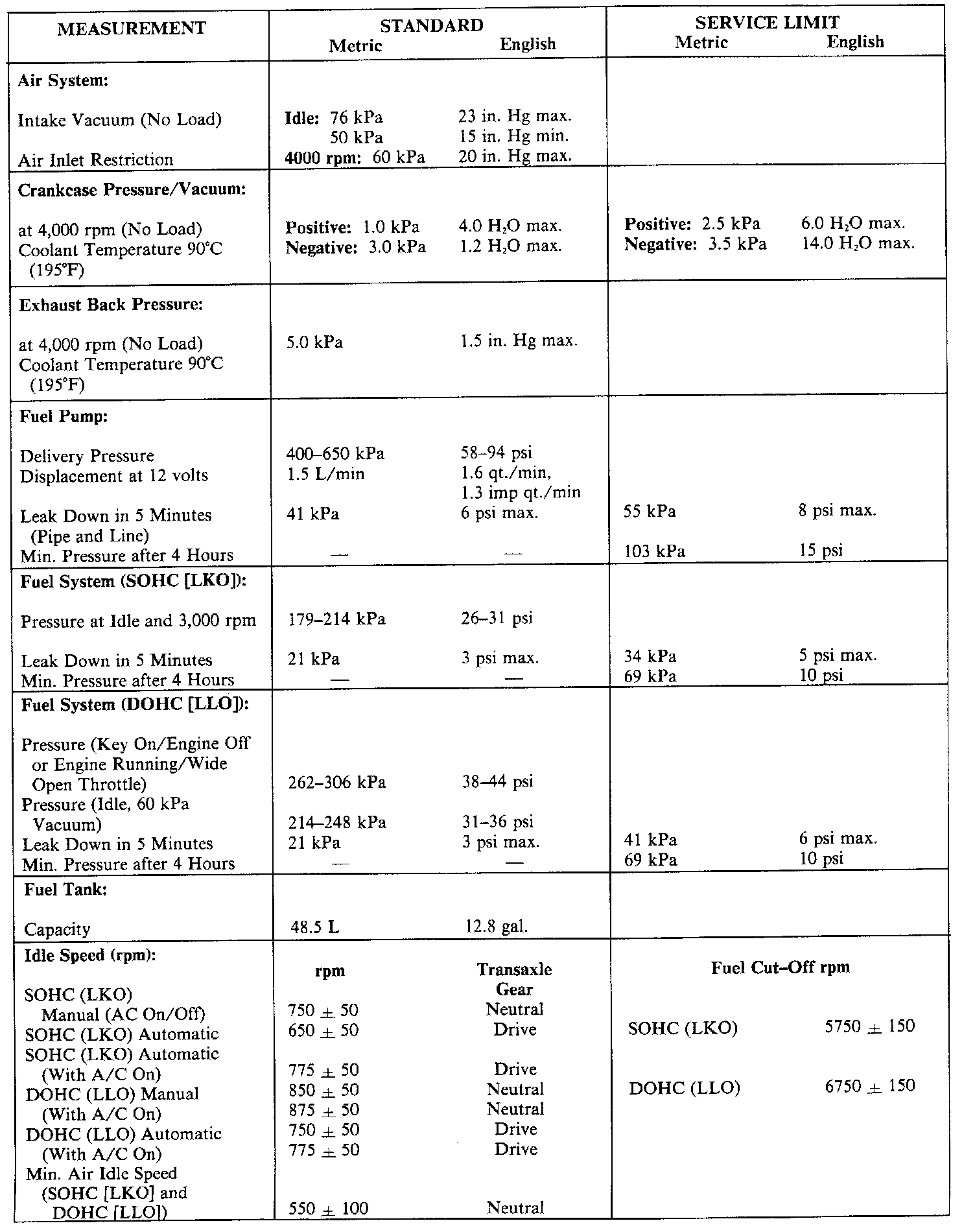

Fuel And Emission System:
