Driver Inflator Module: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Saturn SW2, 1995 Saturn SW1, 1995 Saturn SL2, 1995 Saturn SL1, and 1995 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

Disable SIR system. See DISABLING & ACTIVATING AIR BAG SYSTEM. Remove screw caps on steering wheel by prying with flathead screwdriver. Remove inflator module screws. Lift inflator out of module. See Fig 1.

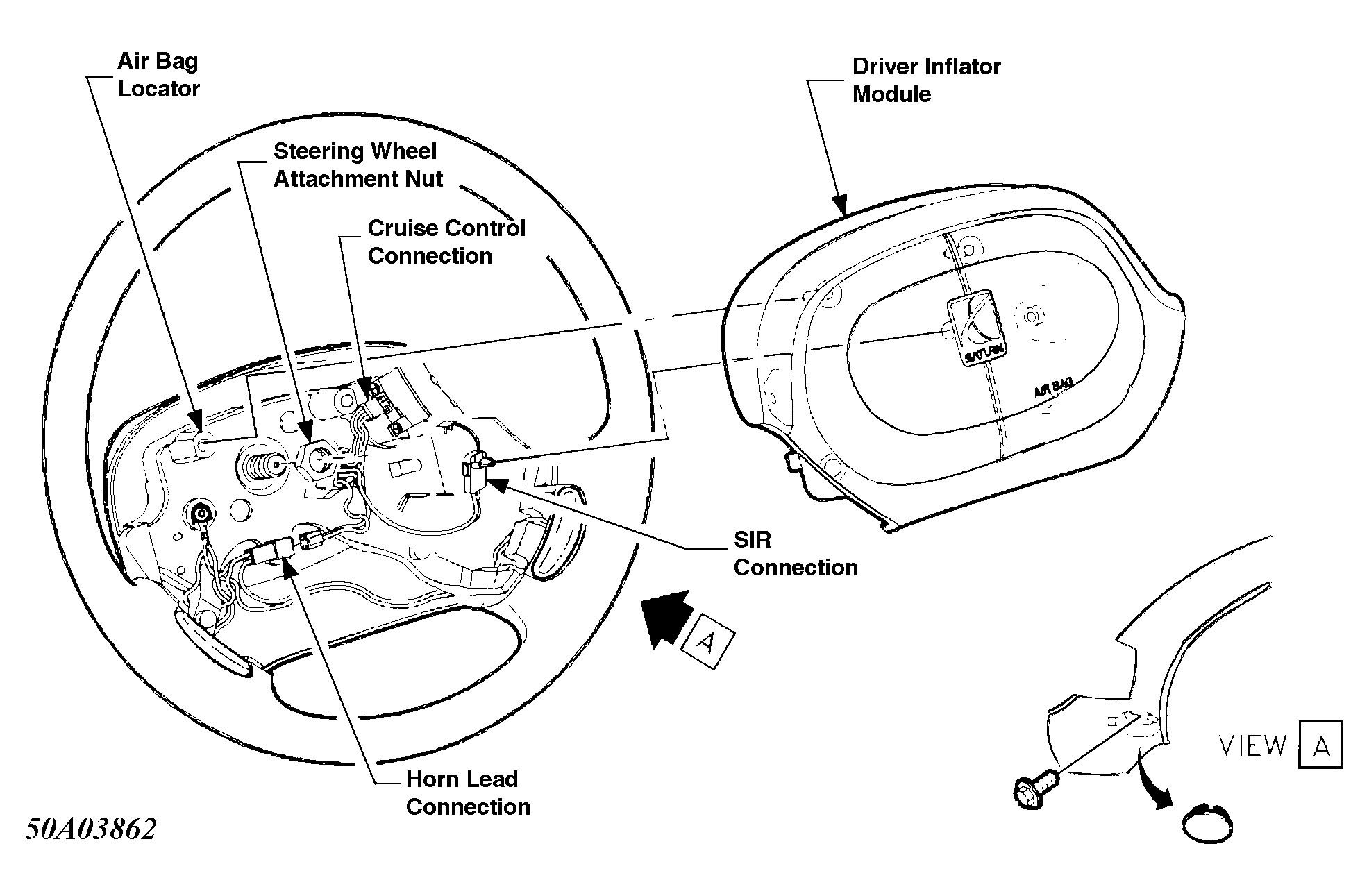

Fig 1: View Of Steering Wheel And Driver Inflator Module
Courtesy of GENERAL MOTORS CORP.
Remove integral connector lock device with small flathead screwdriver. Disconnect connector and remove inflator module. See Fig 2.

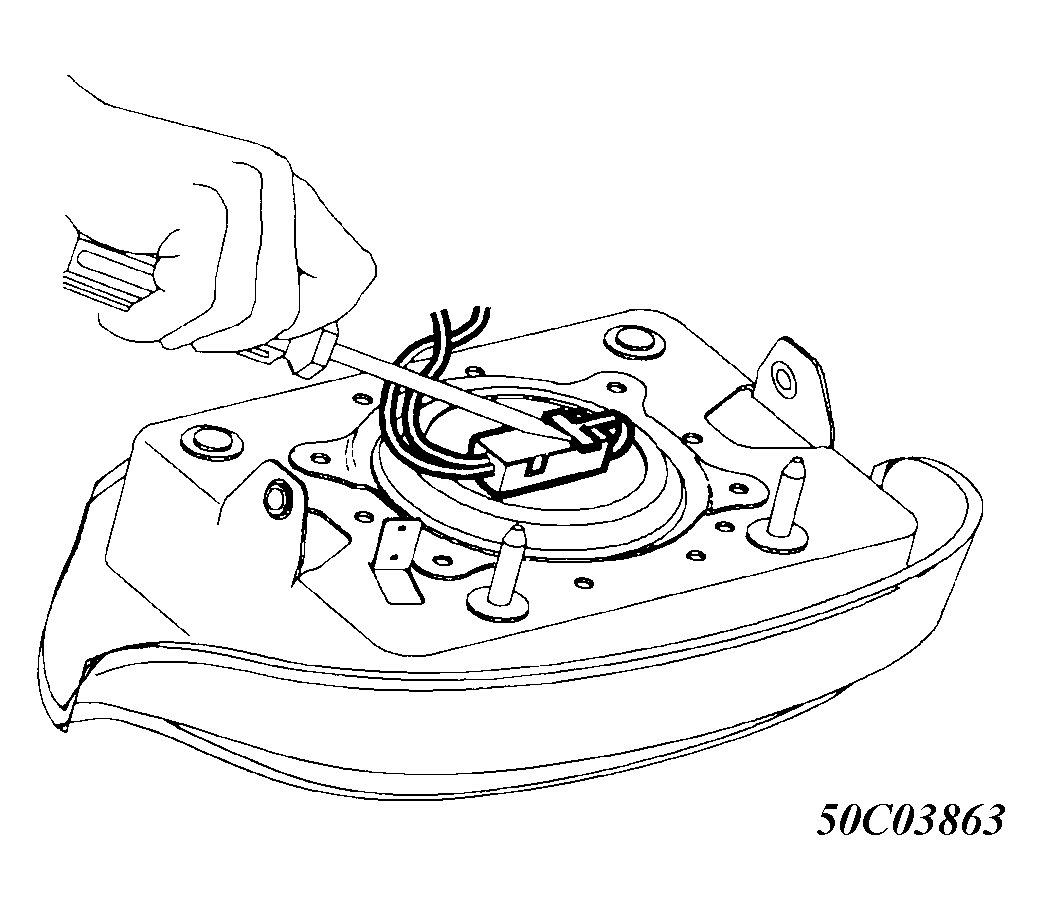

Fig 2: Removing Integral Connector Lock Device

Courtesy of GENERAL MOTORS CORP.

NOTE: Always replace inflator module fasteners, do not reuse.
