Seat Belts - Automatic: Diagnosis

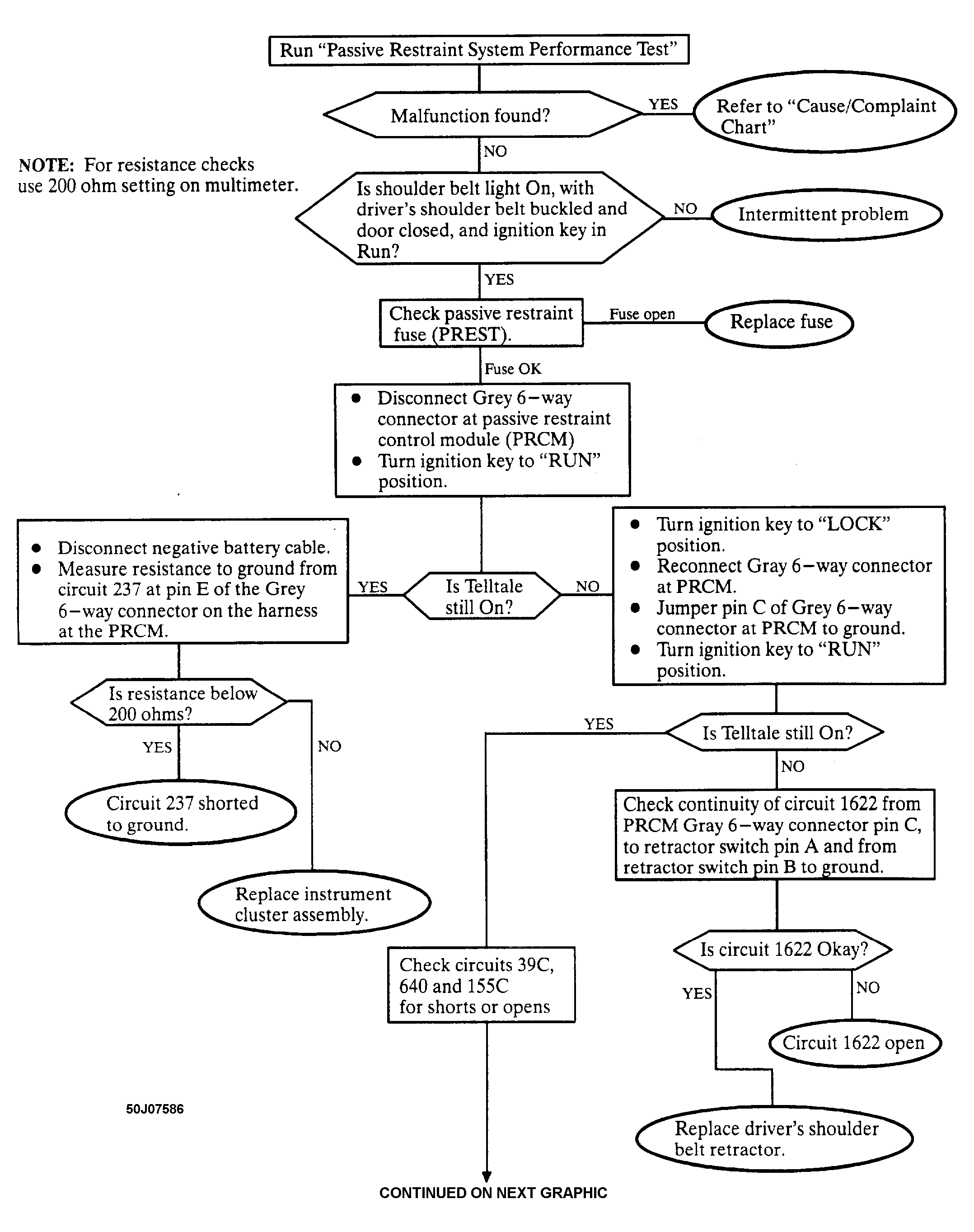

Fig 1: Passive Restraint Diagnosis Chart (1 of 3)
G50J07586

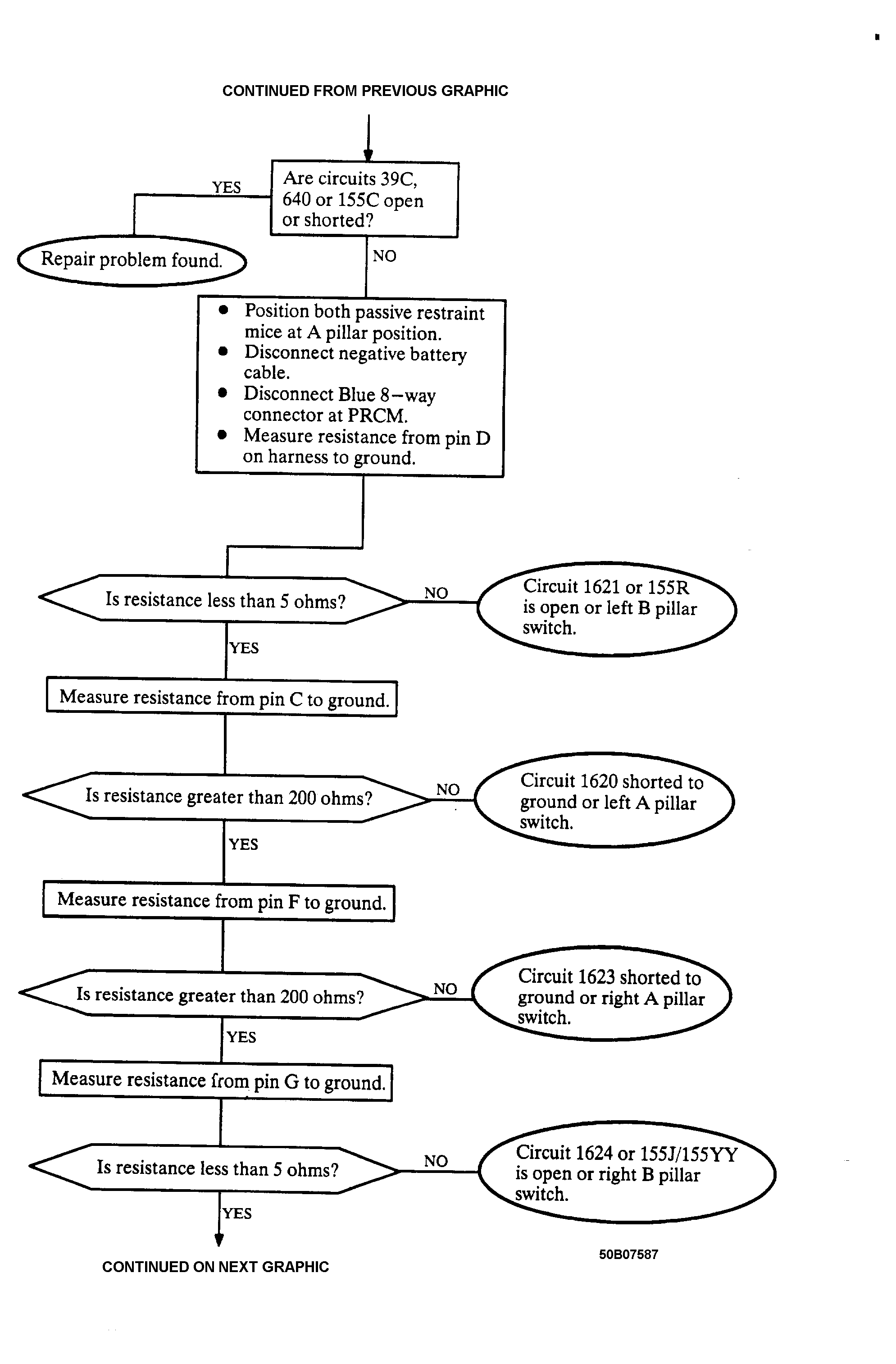

Fig 2: Passive Restraint Diagnosis Chart (2 of 3)
G50B07587

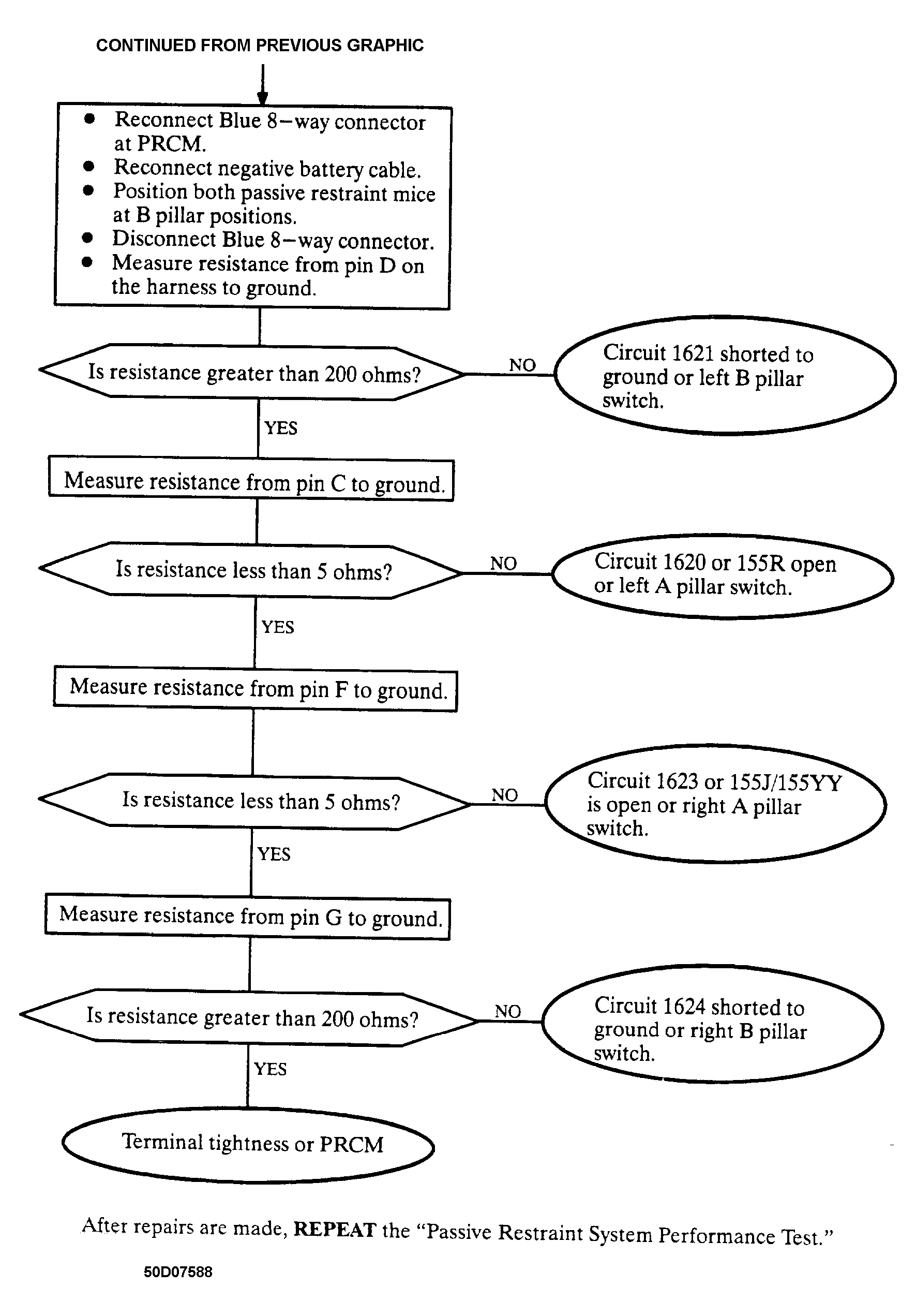

Fig 3: Passive Restraint Diagnosis Chart (3 of 3)
G50D07588
