Liftgate Release Motor - Wagon

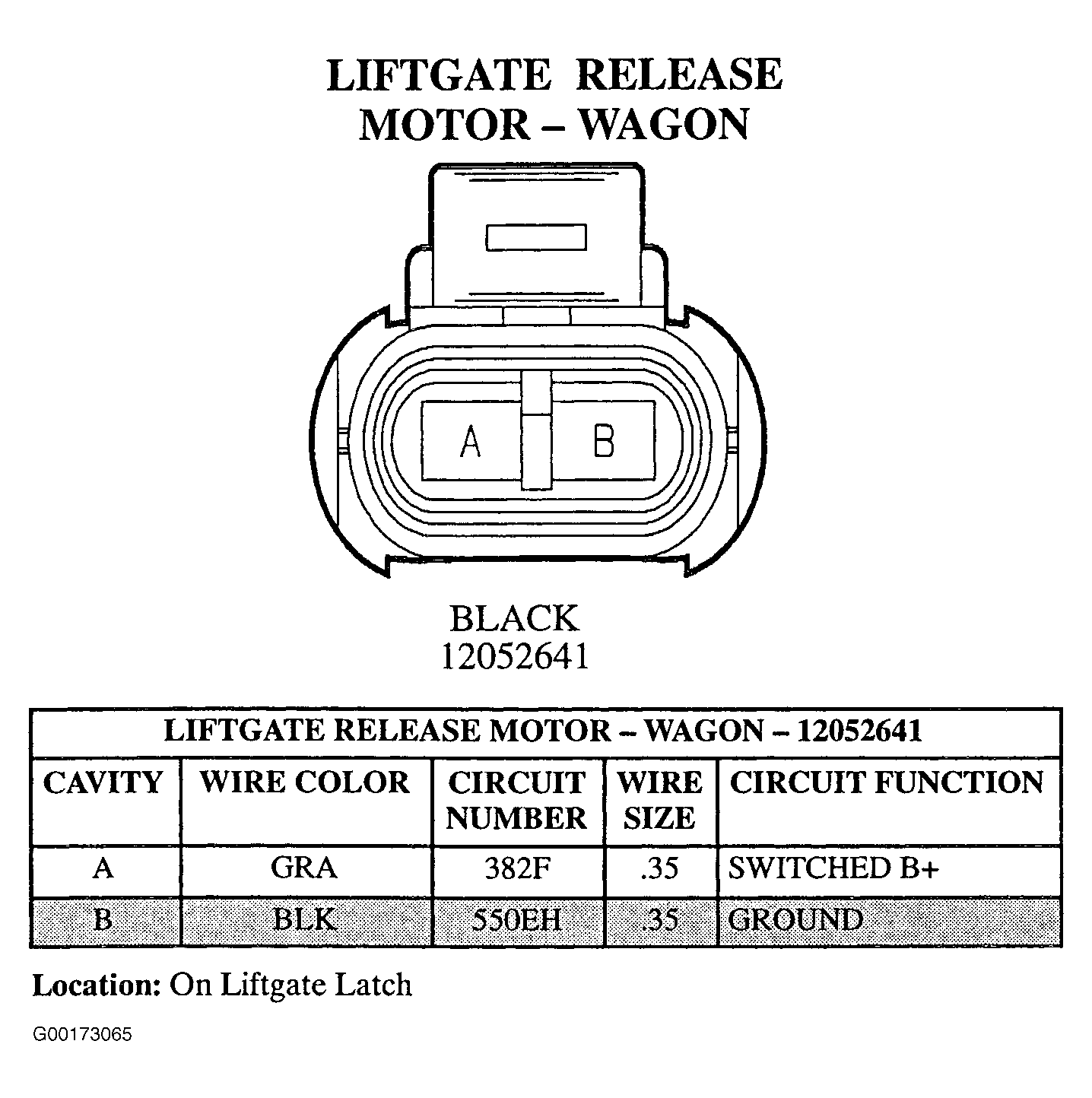

Fig 1: Liftgate Release Motor (Wagon) - 2-Pin Connector (12052641) - Black
G00173065Courtesy of GENERAL MOTORS CORP.
