UNDERHOOD Junction Block - I/P

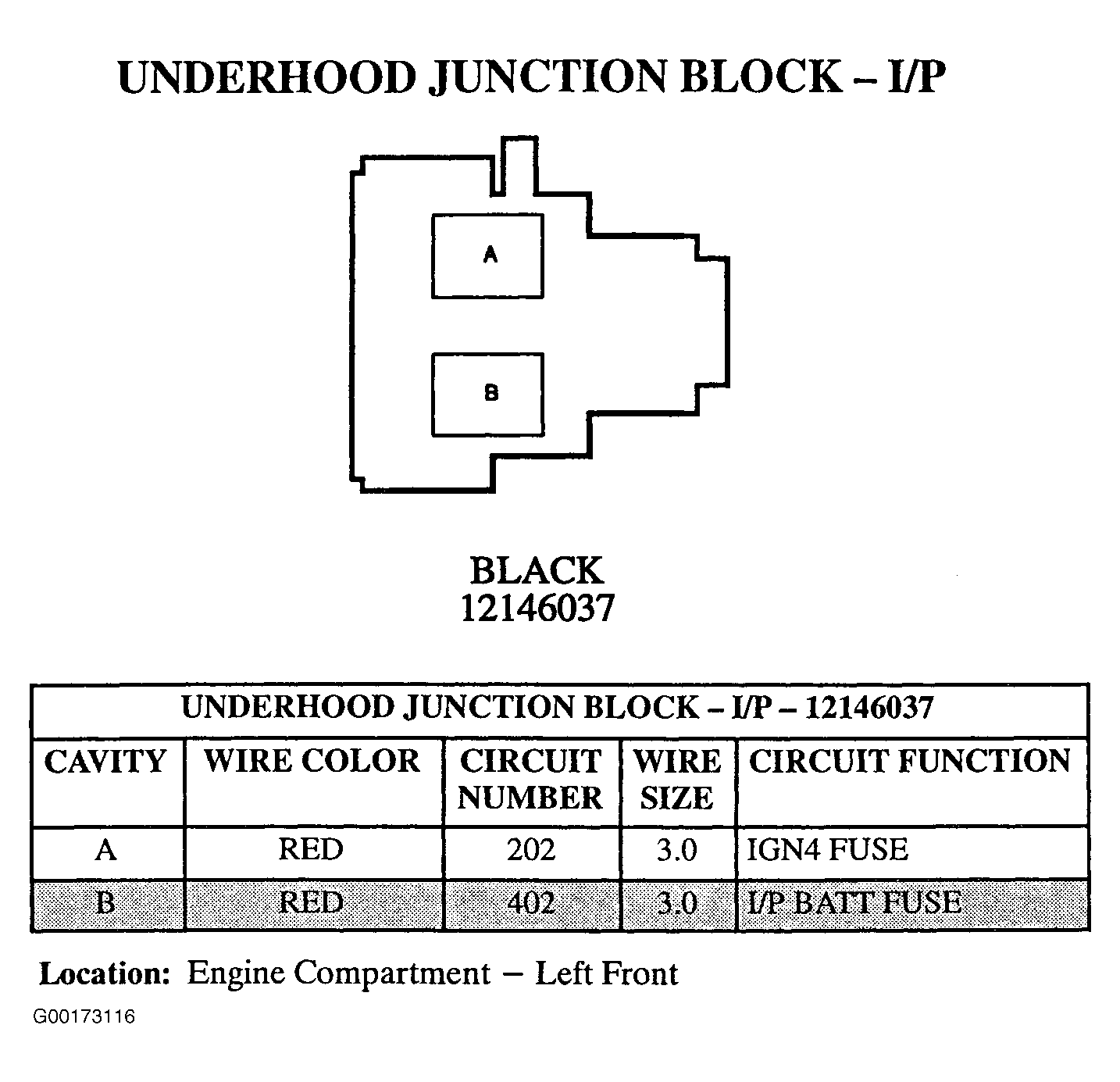

Fig 1: Underhood Junction Block (I/P) - 2-Pin Connector (12146037) - Black
G00173116Courtesy of GENERAL MOTORS CORP.

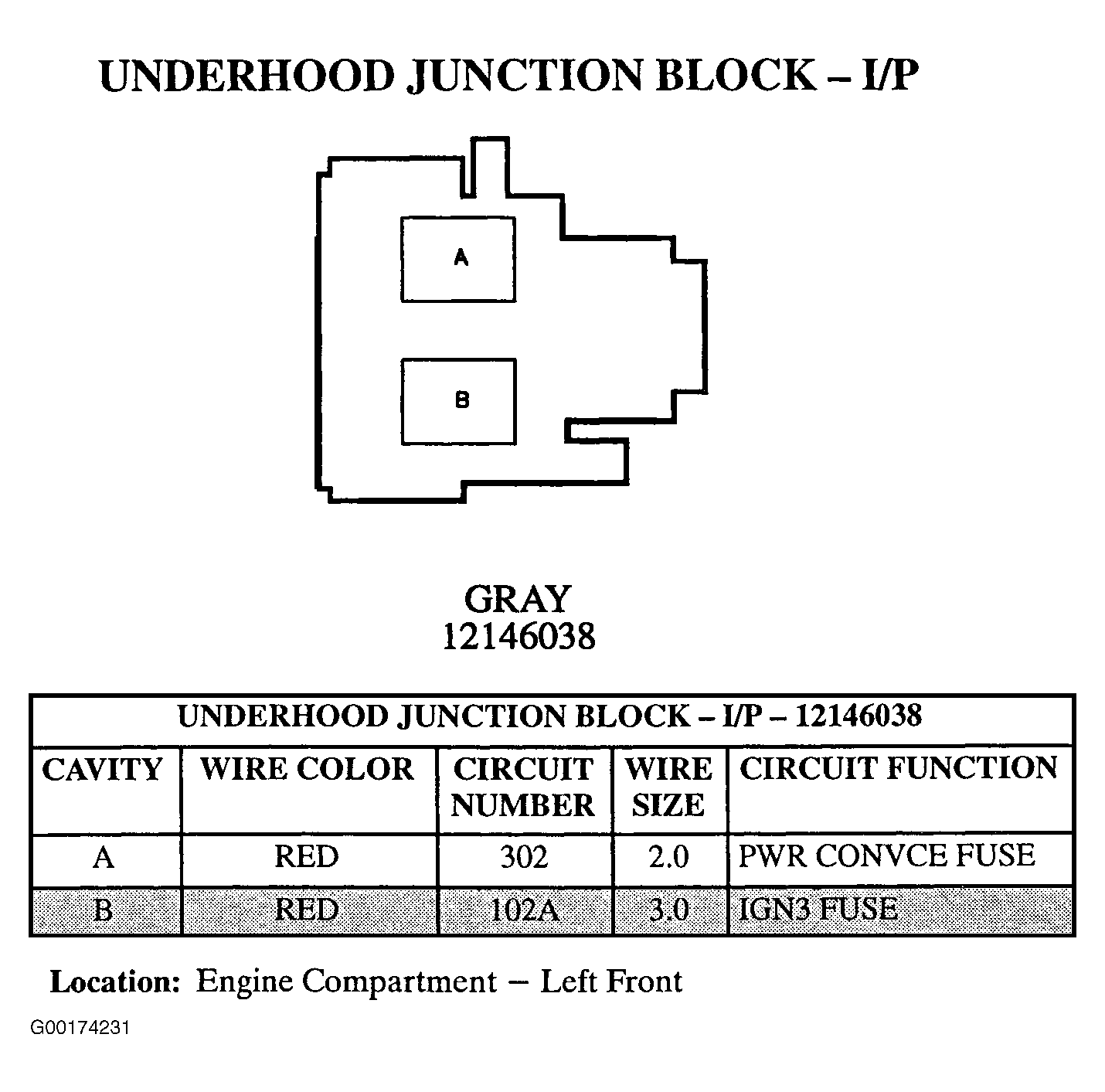

Fig 2: Underhood Junction Block (I/P) - 2-Pin Connector (12146038) - Gray
G00174231Courtesy of GENERAL MOTORS CORP.

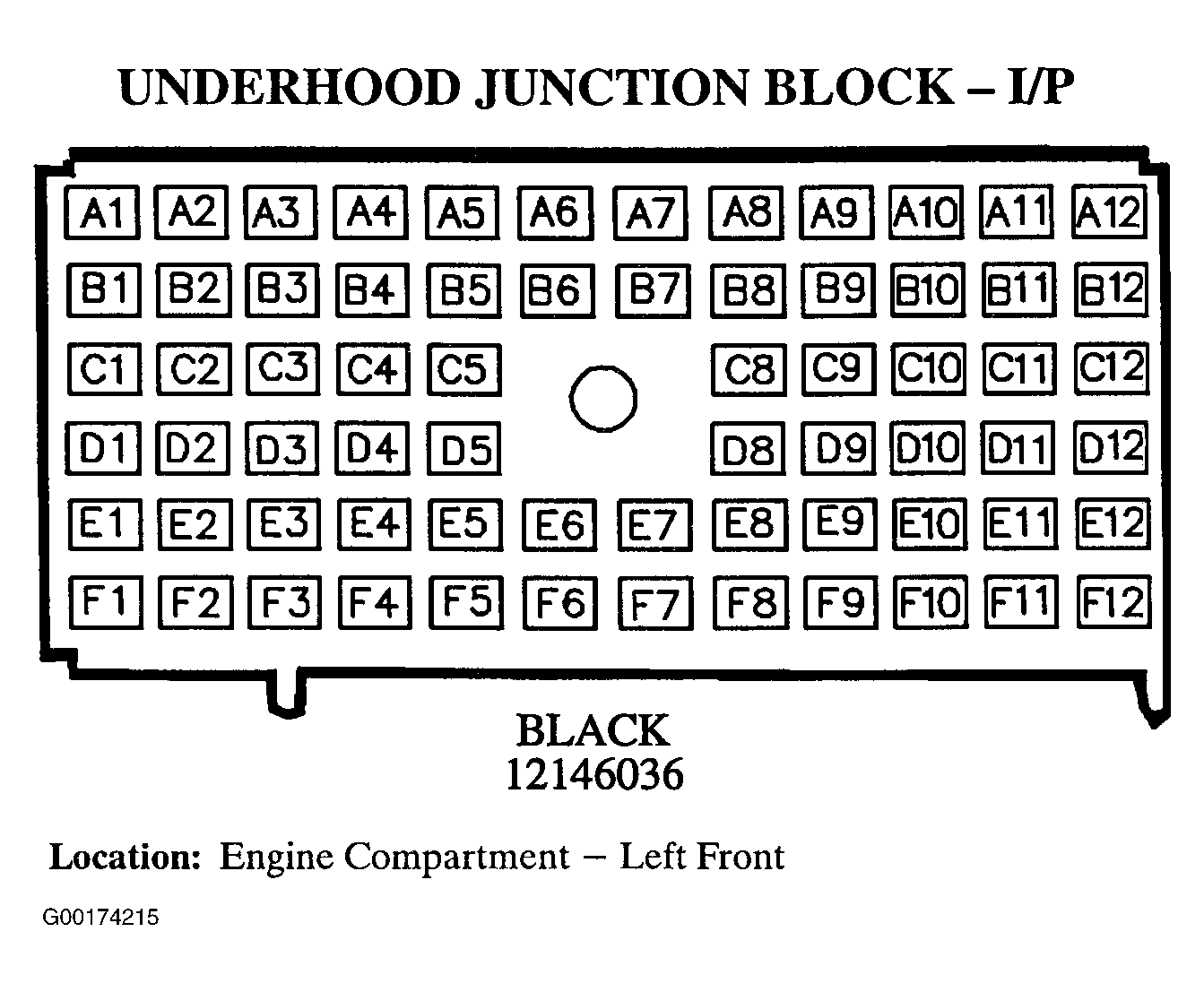

Fig 3: Underhood Junction Block - I/P (Connector) - 68-Pin Connector (12146036) - Black (1 Of 3)
G00174215Courtesy of GENERAL MOTORS CORP.

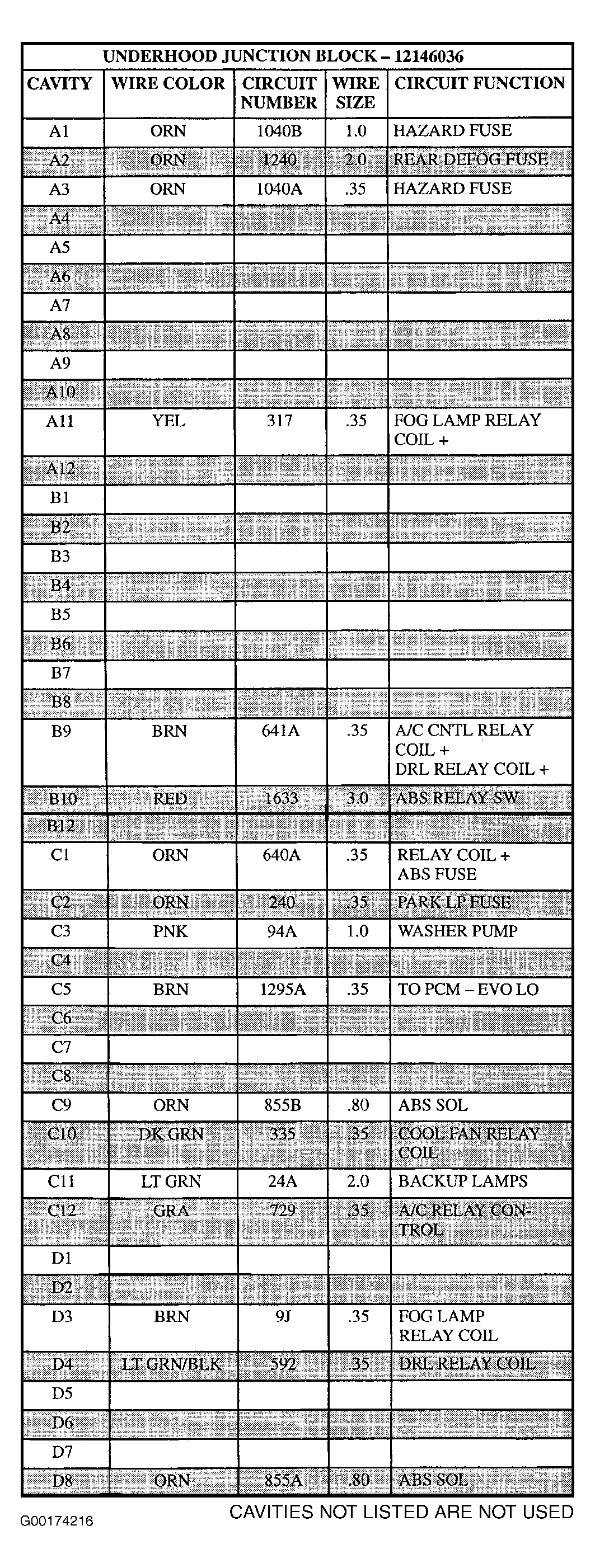

Fig 4: Underhood Junction Block - I/P (Chart) - 68-Pin Connector (12146036) - Black (2 Of 3)
G00174216Courtesy of GENERAL MOTORS CORP.

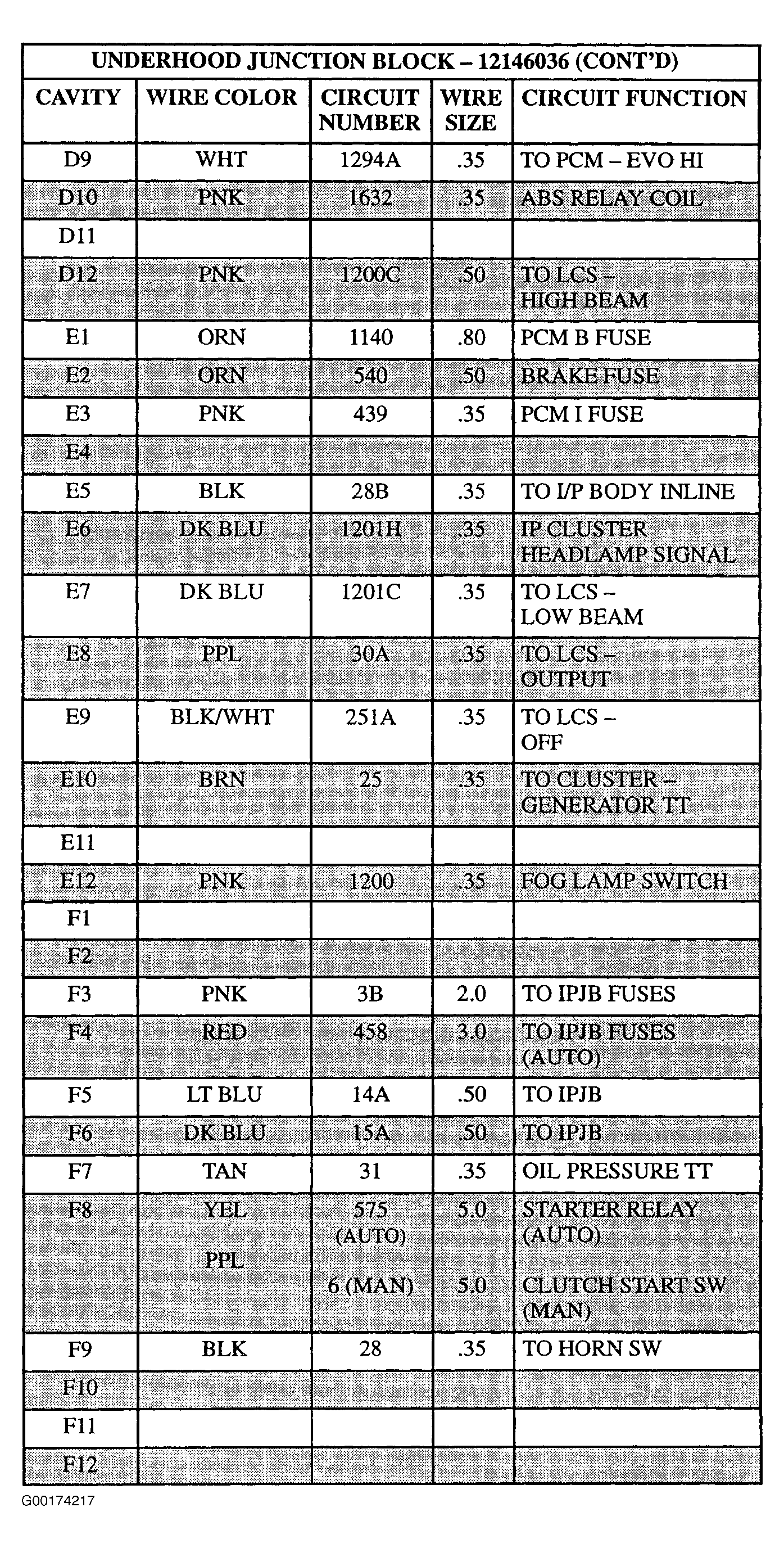

Fig 5: Underhood Junction Block - I/P (Chart) - 68-Pin Connector (12146036) - Black (3 Of 3)
G00174217Courtesy of GENERAL MOTORS CORP.
