Instrument Panel Junction Block (IPJB)

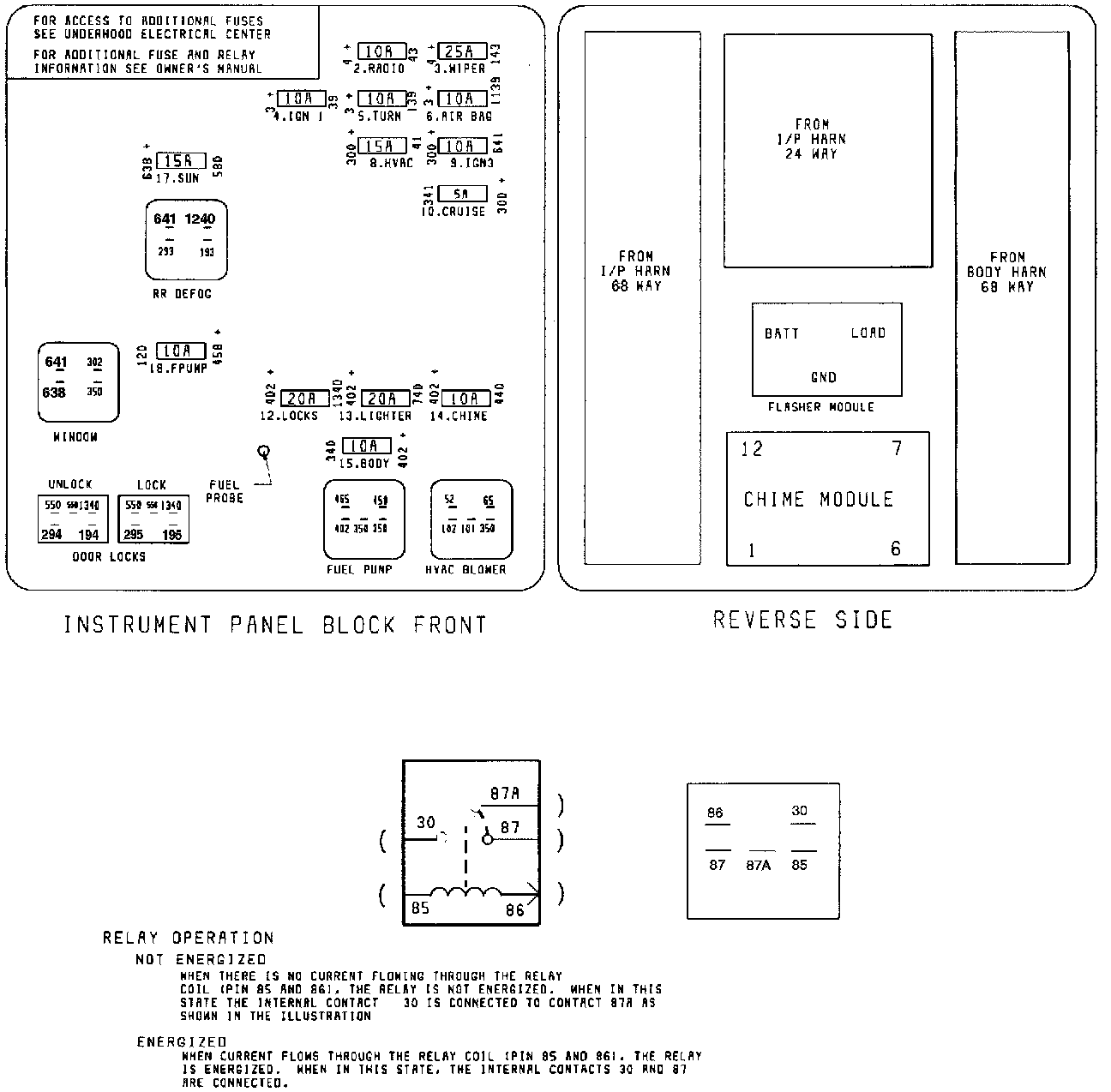

Instrument Panel Junction Block (IPJB):

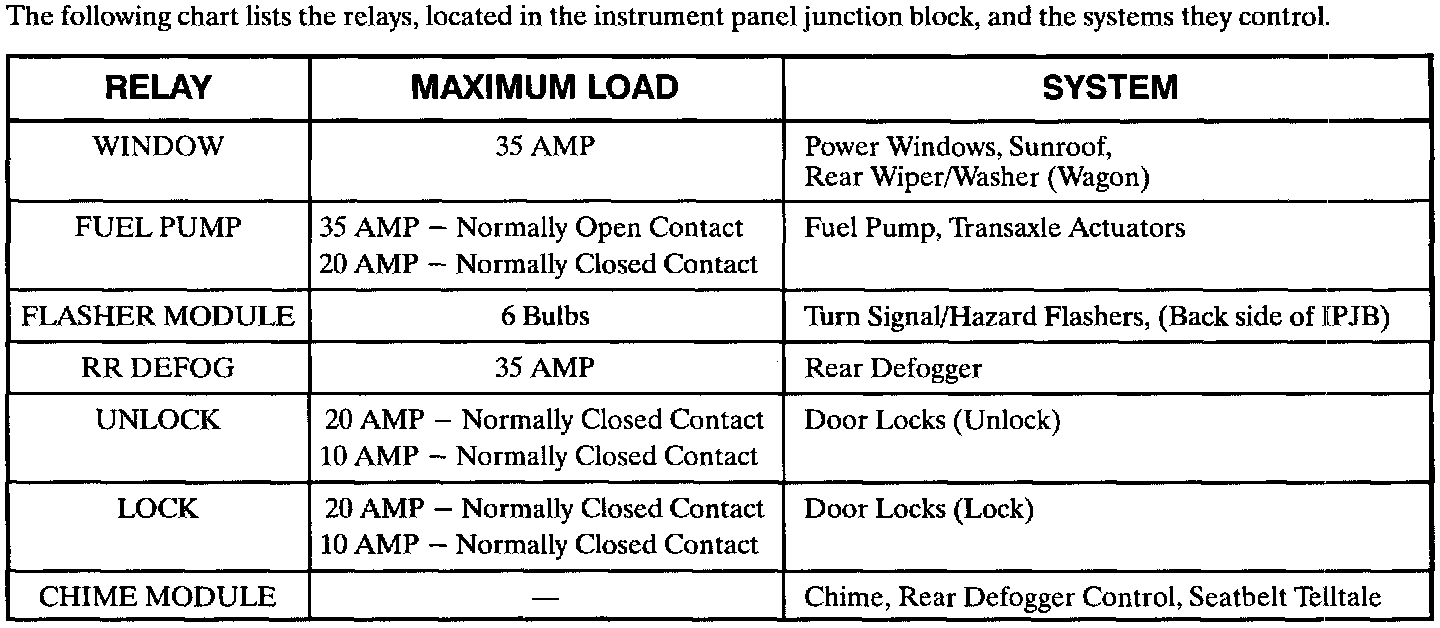

Instrument Panel Junction Block (IPJB): Relay/Module Circuit Feeds:
