Instrument Panel Junction Block (IPJB)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

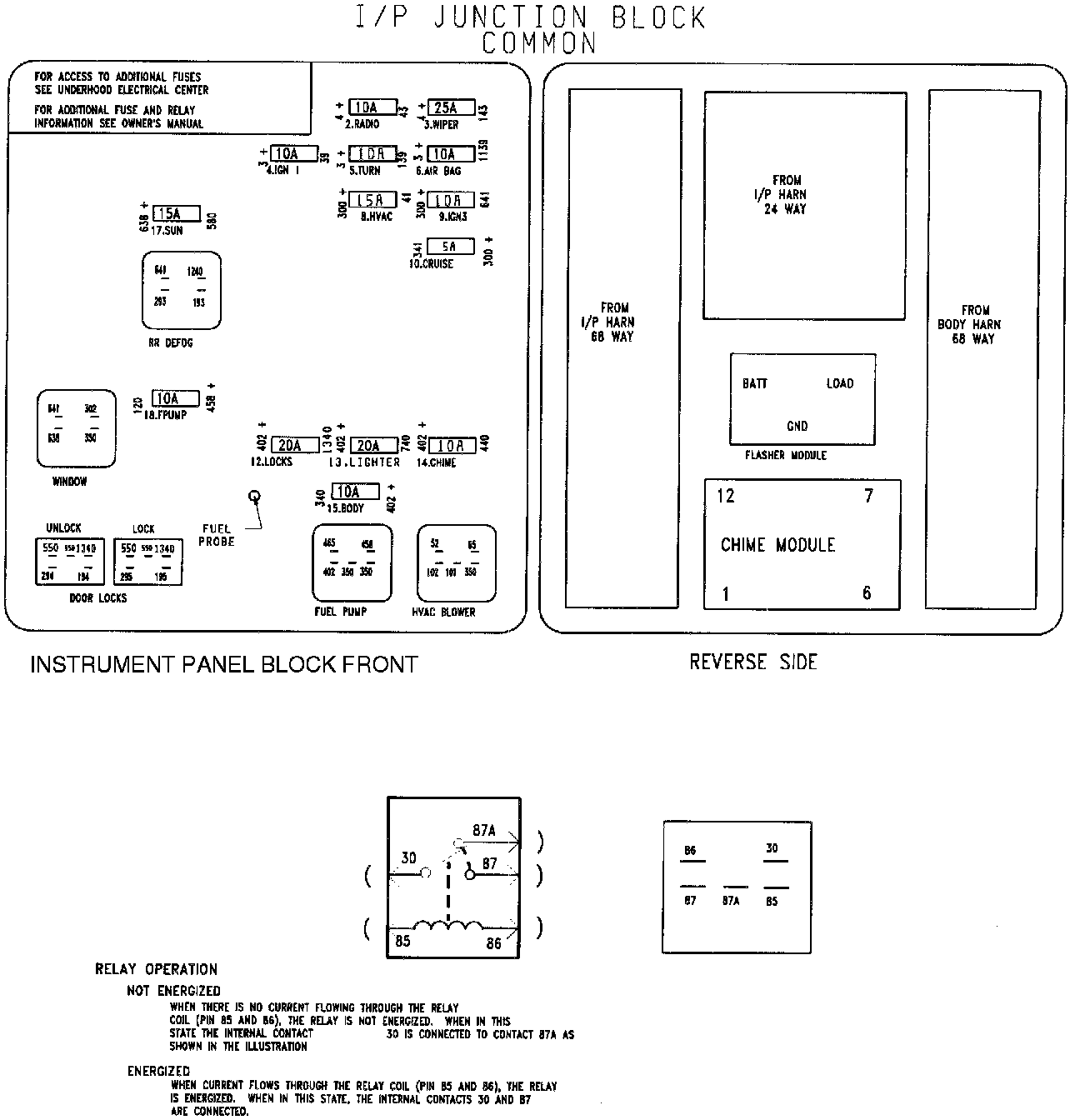

Instrument Panel Junction Block (IPJB)
Wiring Diagram:
