Connector Views

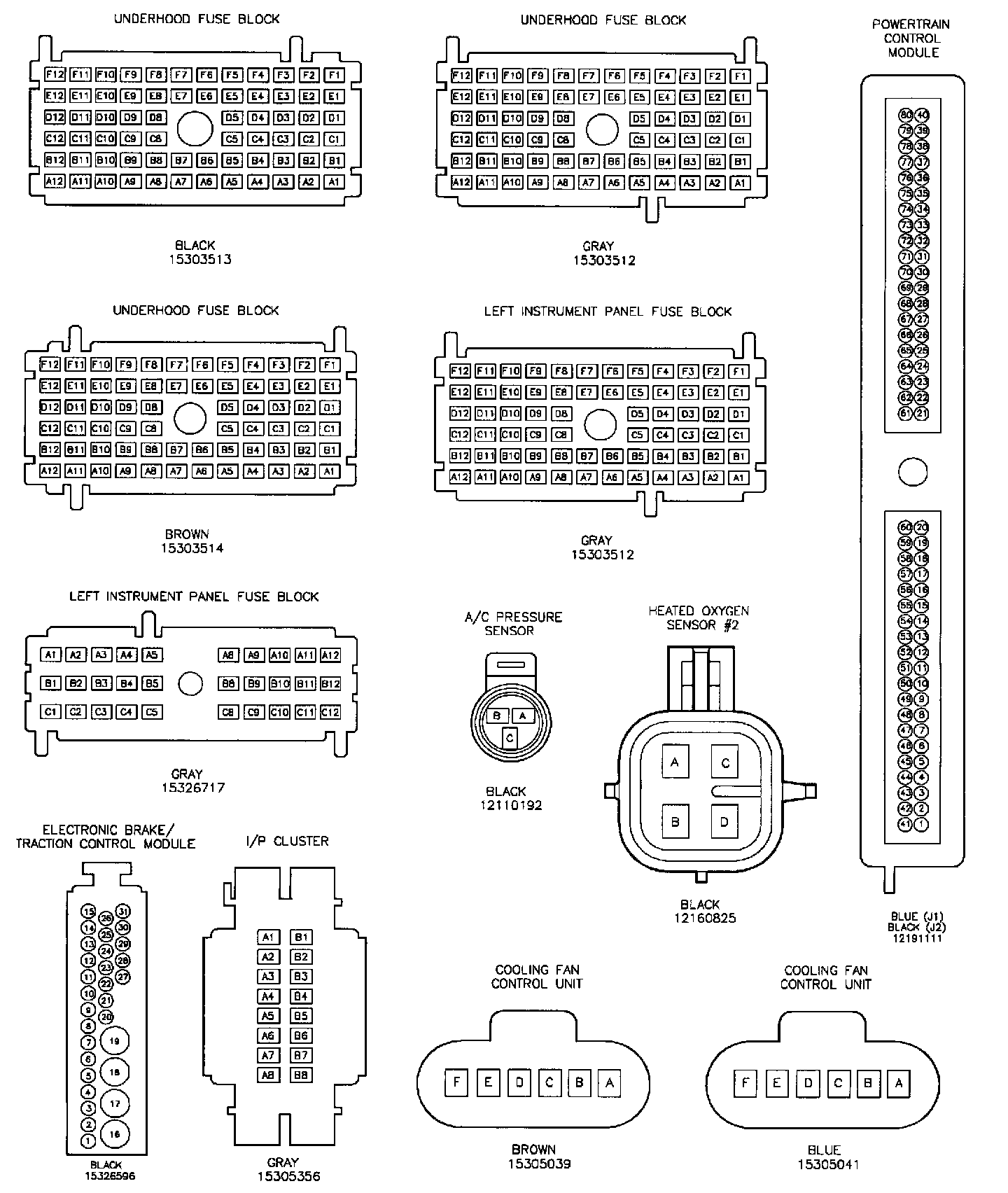

Cruise Control Harness Connector Face Views (Part 1 Of 2):

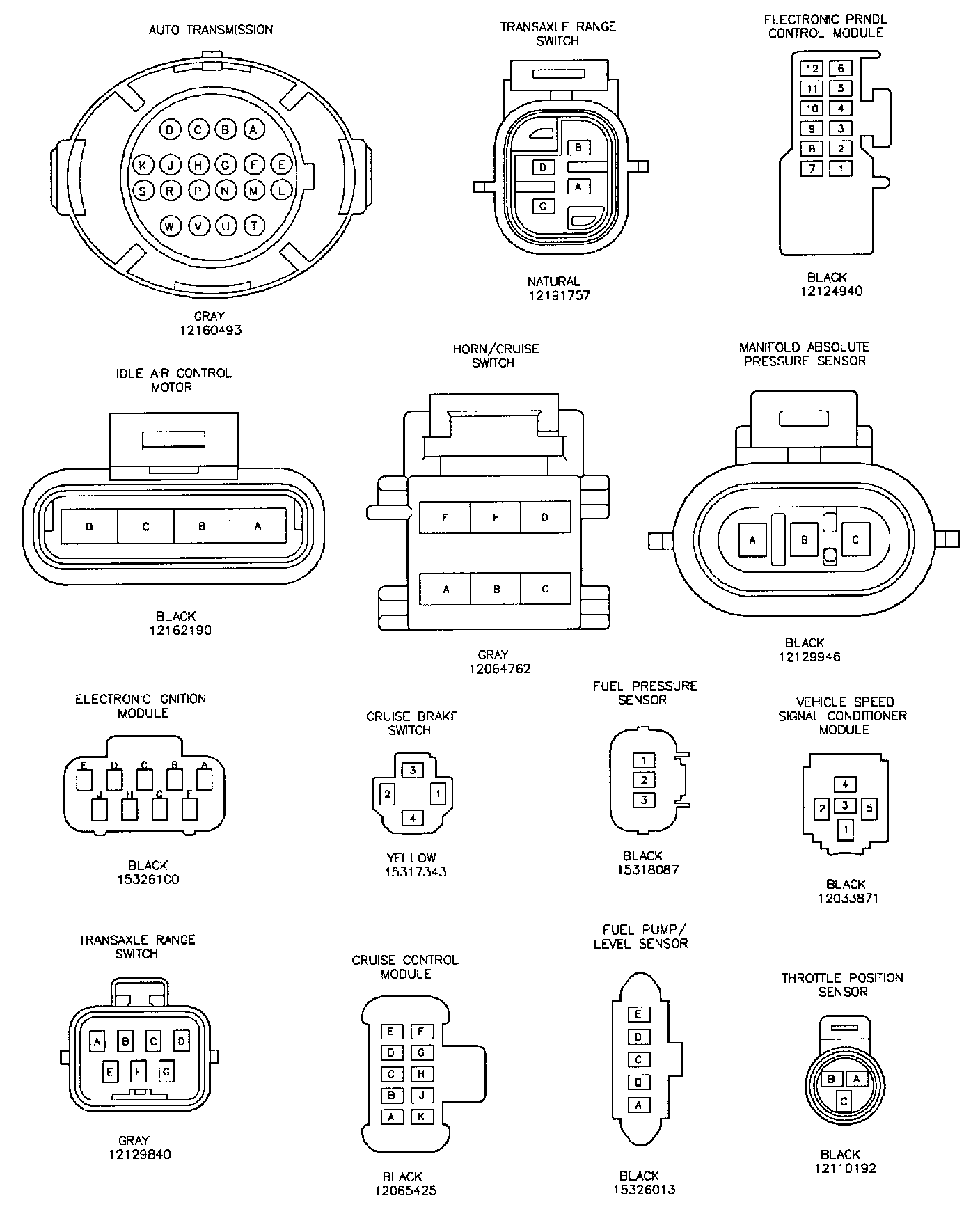

Cruise Control Harness Connector Face Views (Part 2 Of 2):
