Saturn
>>
2000
>>
LS1 L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Engine Cranks But Does Not Run
>>
Chart 2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Chart 2
Diagnostic Chart (Part 2 Of 5):

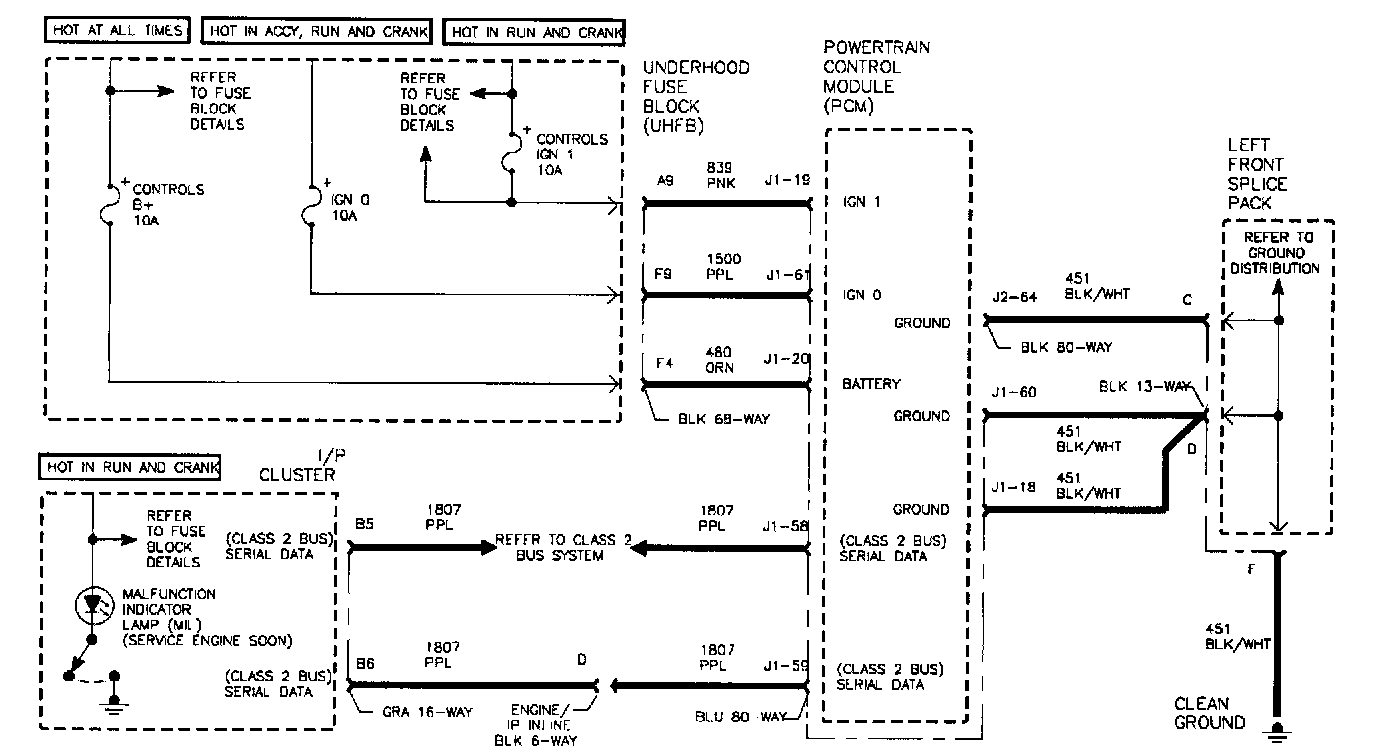

Schematic:
This chart will isolate possible faults with ignition feed to the
PCM
.
