14. TFP Switch Removal

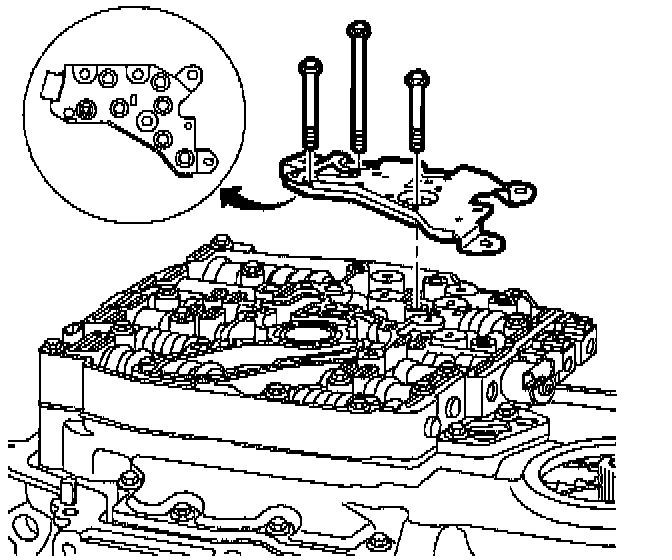

1. Remove TFP switch assembly bolts.
2. Remove TFP switch assembly from control valve body assembly. The seven pressure switch O-rings are reusable and should remain with the TFP switch assembly.
