Shift Indicator - A/T: Service and Repair

REMOVAL

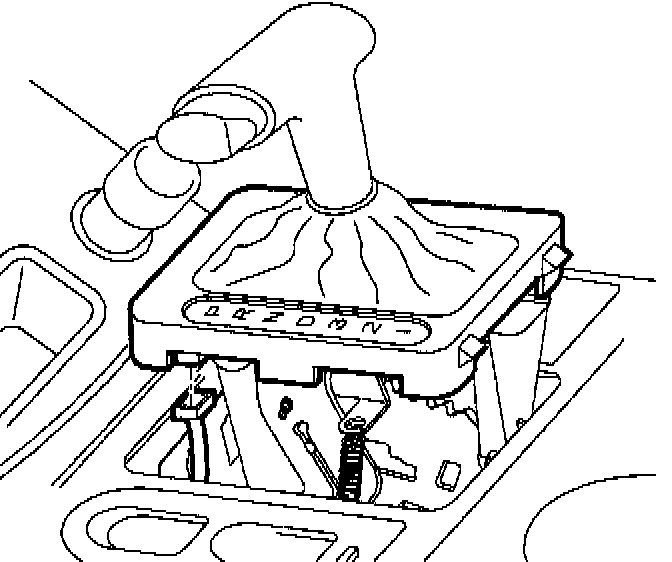

1. Pull up on control boot until indicator bezel disengages from console.
2. Disconnect electrical connector from indicator bezel.

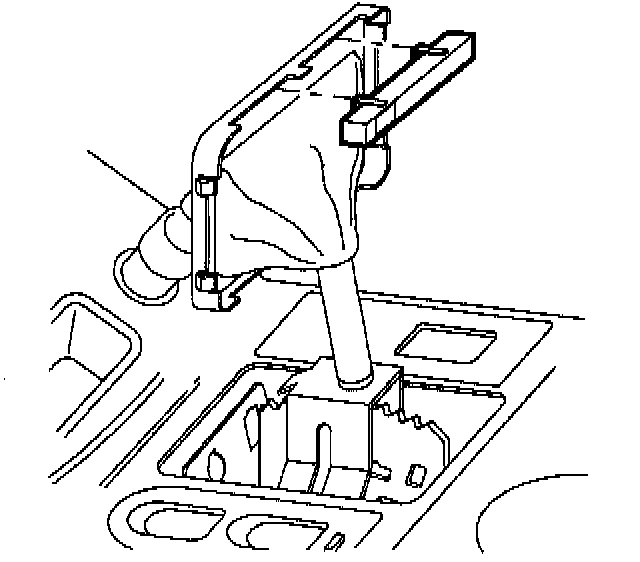

3. Pull boot up around control knob to access shift control indicator. Disengage tabs on indicator and remove.

INSTALLATION

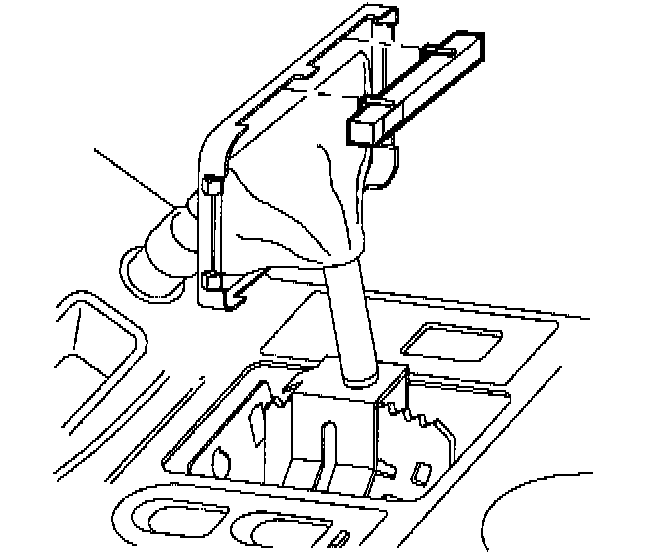

1. Install shift control indicator into indicator bezel.





2. Connect indicator bezel electrical connector.

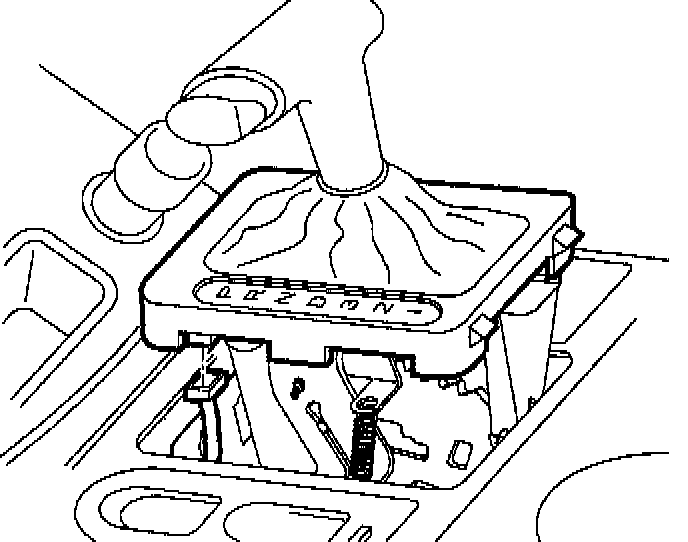

3. Install indicator bezel into console opening.
