Home
>>
Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Underhood Fuse Block
>>
Component Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

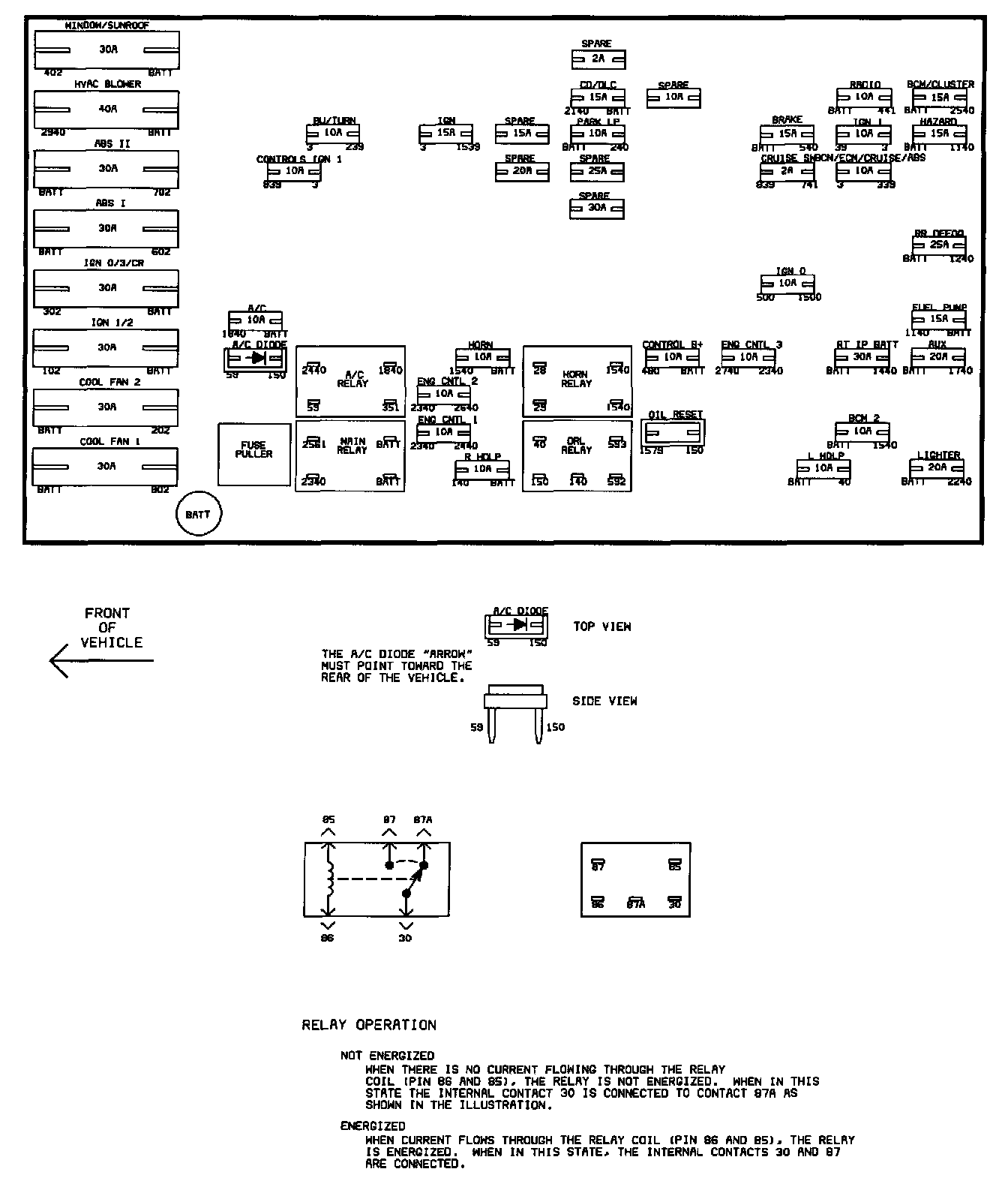

Component Layout
Underhood Fuse Block:
