Control Units

CONTROL UNITS

Component Component Location
Body Control Module (BCM) At center of dash, under dash cover. See Figure.

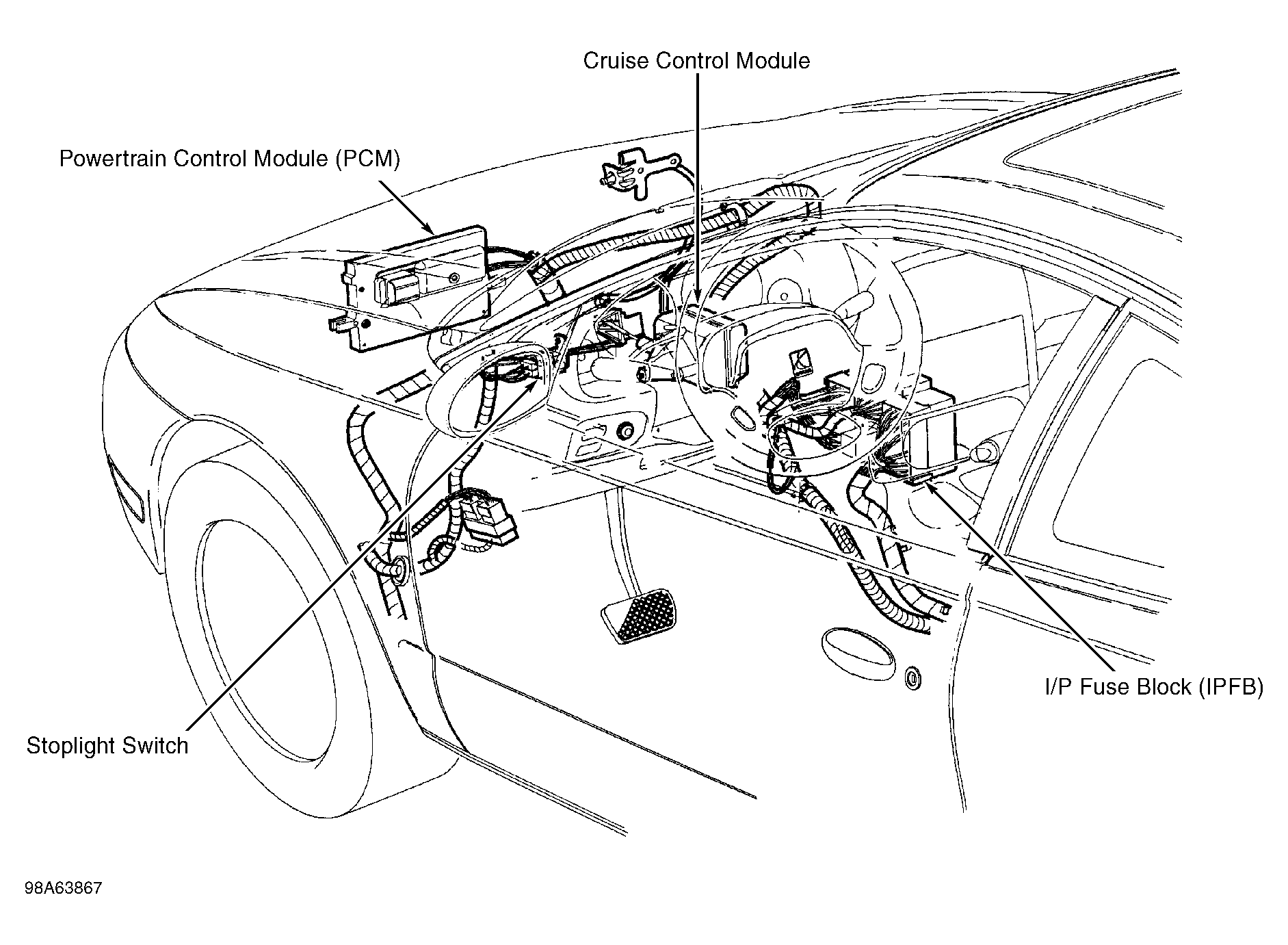

Cruise Control Module Attached to steering column. See Figure.
Electronic Brake/Traction Control Module (EBTCM) At left rear of engine compartment.

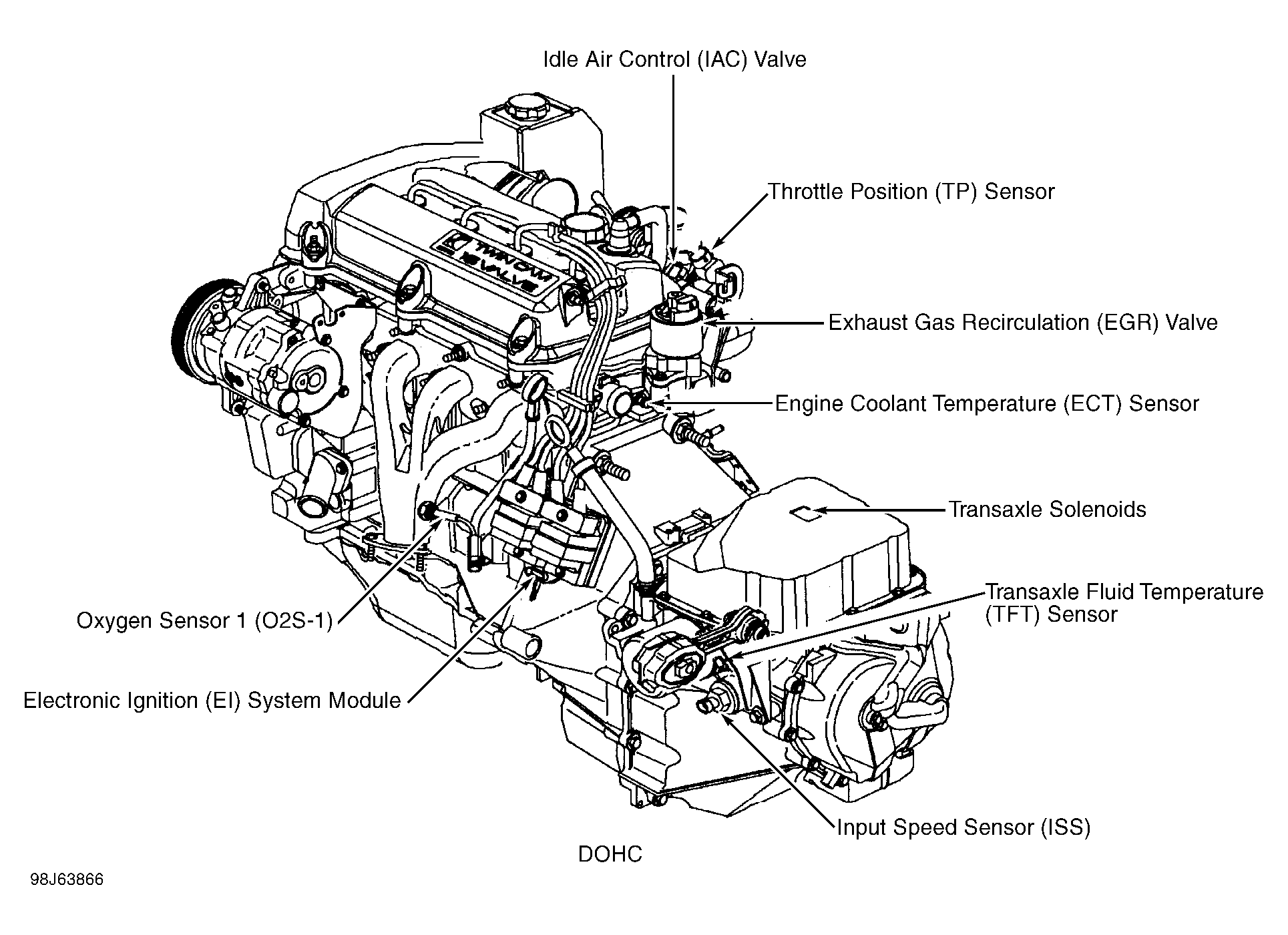

Electronic Ignition (EI) System Module (DOHC) On left front side of transaxle housing. See Figure.

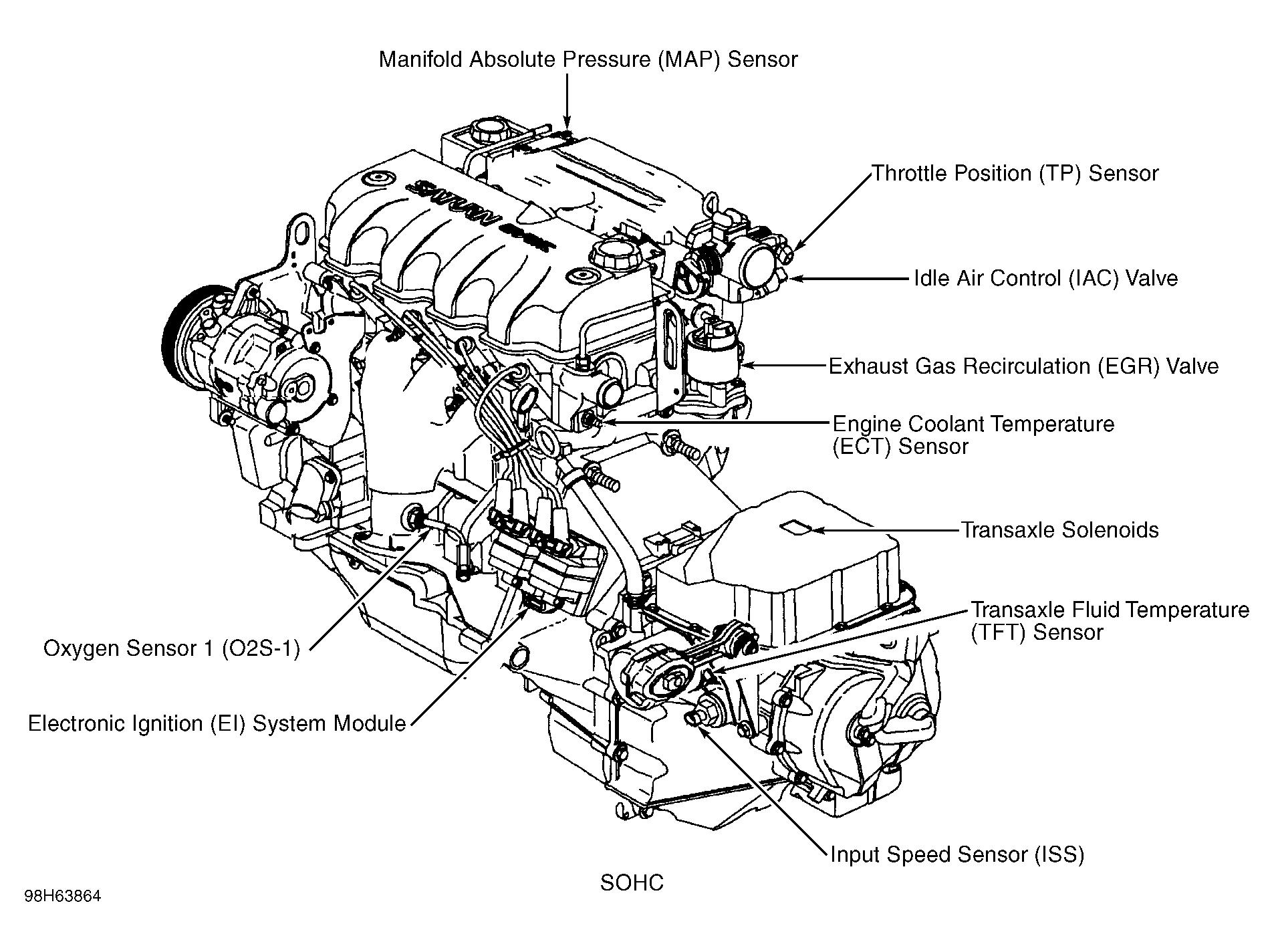

Electronic Ignition (EI) System Module (SOHC) On left front side of transaxle housing. See Figure.
Powertrain Control Module (PCM) Between battery & power brake booster. See Figure.
Sensing & Diagnostic Module Under center floor console.
