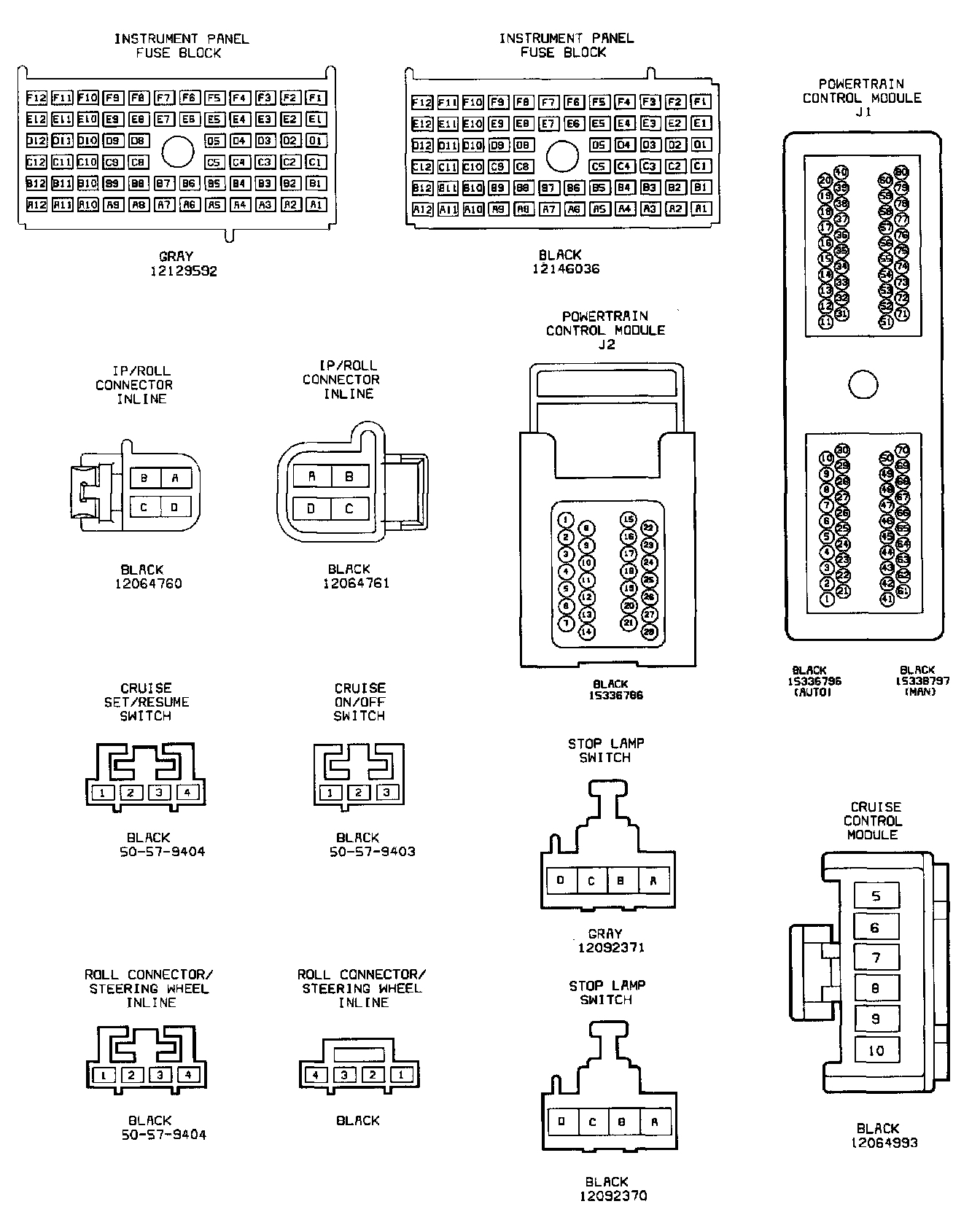

Connector Views





For Complete connector/wire information, refer to "Saturn S-Series Body/Electrical".
