Home >> Saturn >> 2001 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Fuse Block >> Underhood Fuse Block - Engine
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Underhood Fuse Block - Engine

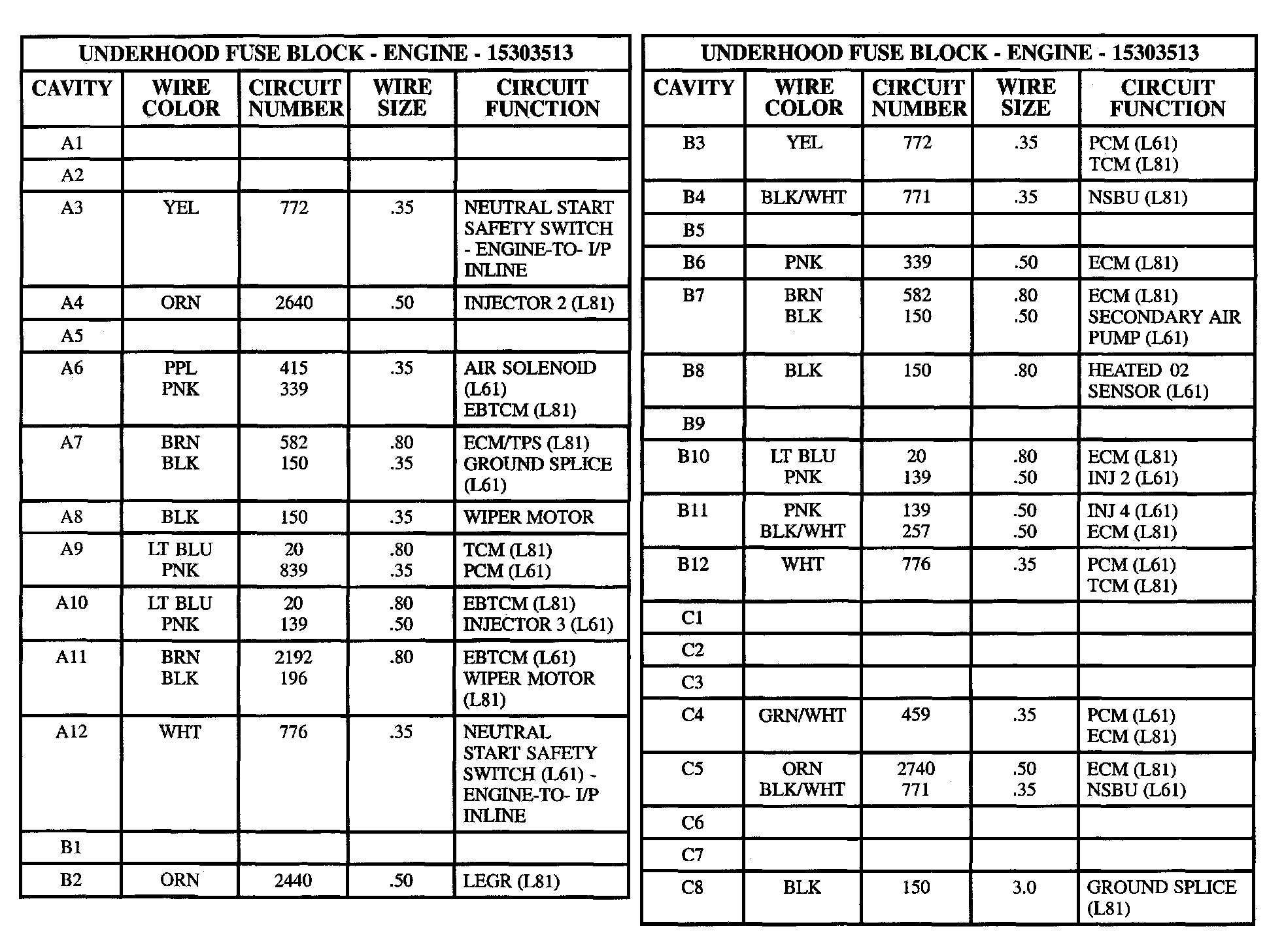

Underhood Fuse Block - Engine (Part 1 Of 4):

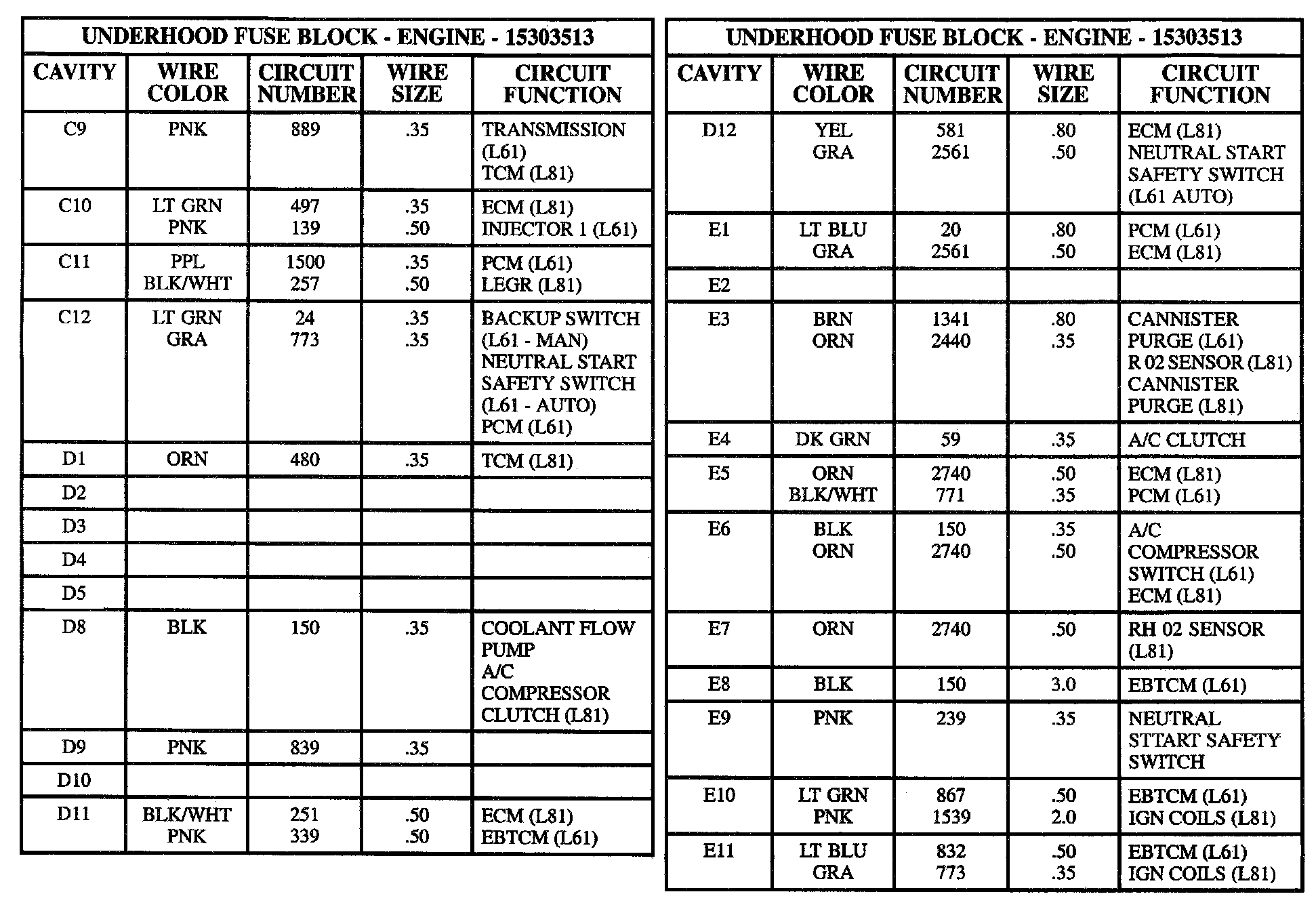

Underhood Fuse Block - Engine (Part 2 Of 4):

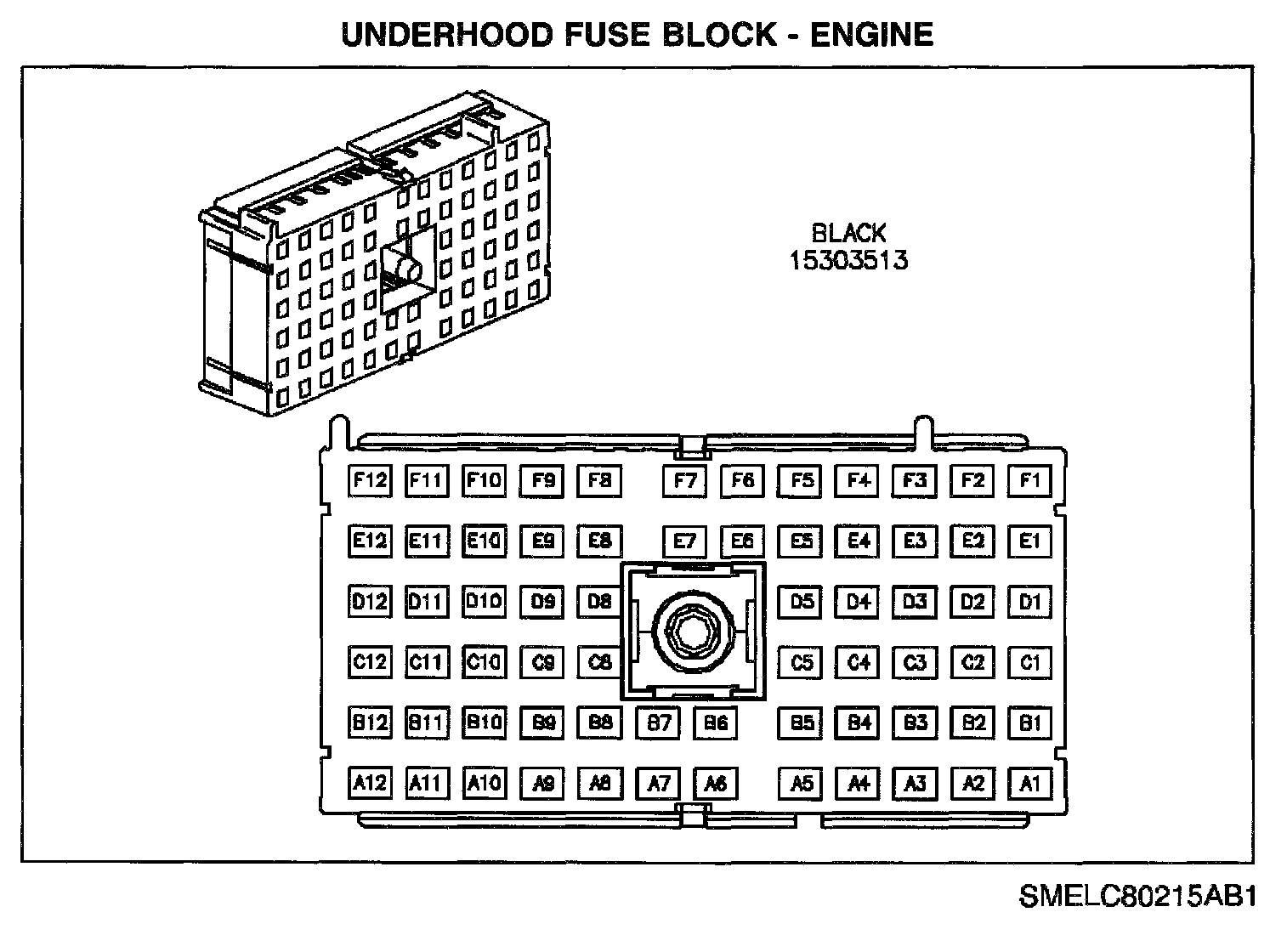

Underhood Fuse Block - Engine (Part 3 Of 4):

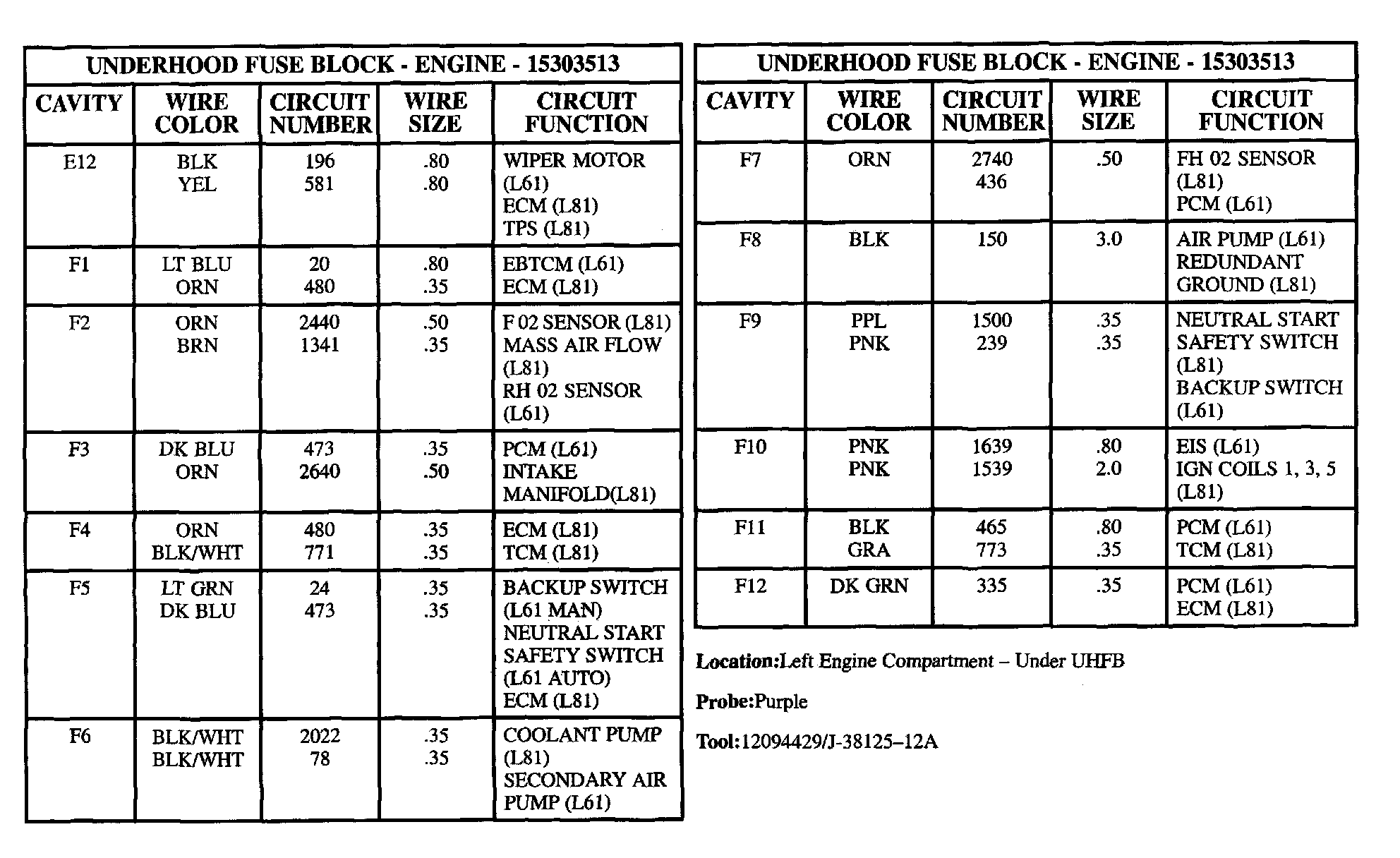

Underhood Fuse Block - Engine (Part 4 Of 4):
