56. Input Speed Sensor Installation

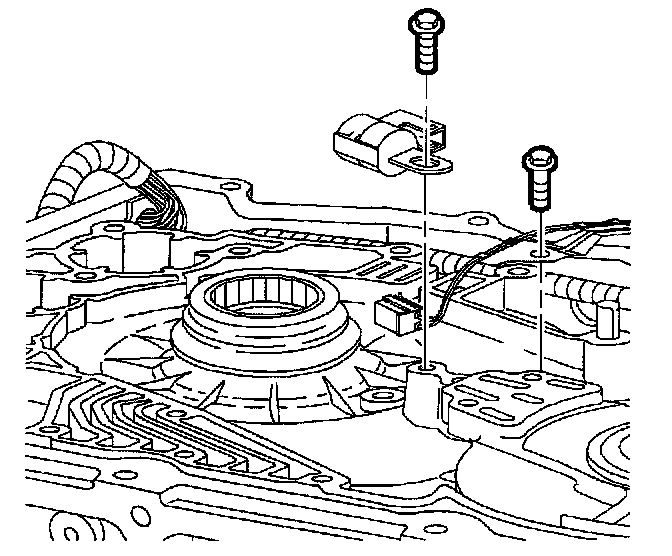

INPUT SPEED SENSOR INSTALLATION

IMPORTANT: The tab on sensor housing fits into recess on case boss.





1. Assemble input speed sensor to transaxle case.
2. Install input speed sensor bolt. Hand start bolts.
Torque:
Input Speed Sensor Bolt: 12 Nm (9 ft. lbs.)
3. Route input speed sensor wiring harness in case channel.
4. Connect input speed sensor connector to input speed sensor.
5. Install wiring harness retainer and wiring harness retainer bolt.
6. Tighten wiring harness retainer bolt.
Torque:
Wiring Harness Retainer Bolt: 12 Nm (9 ft. lbs.)
