Manual Transaxle Torque Specifications

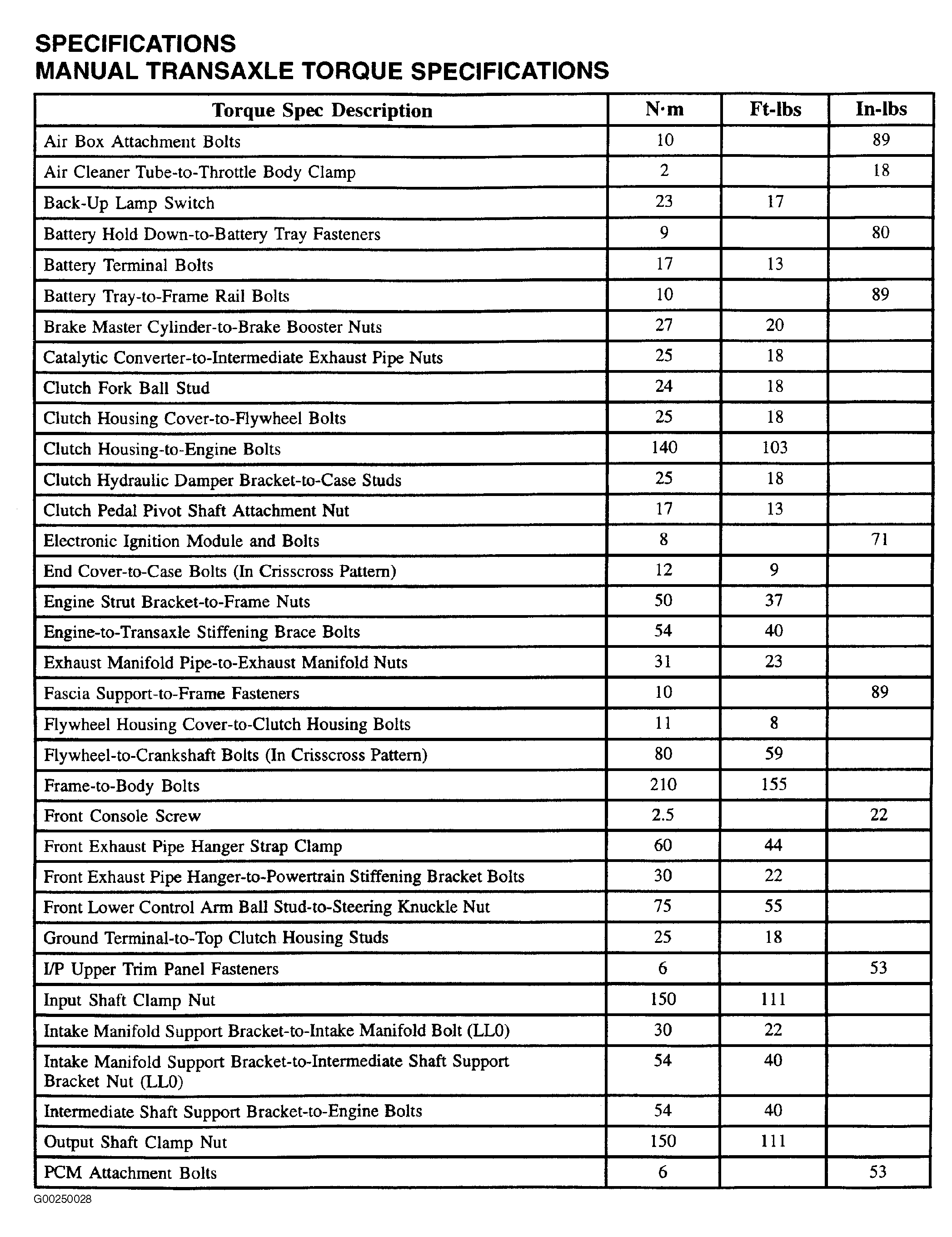

Fig 1: Manual Transaxle Torque Specifications (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

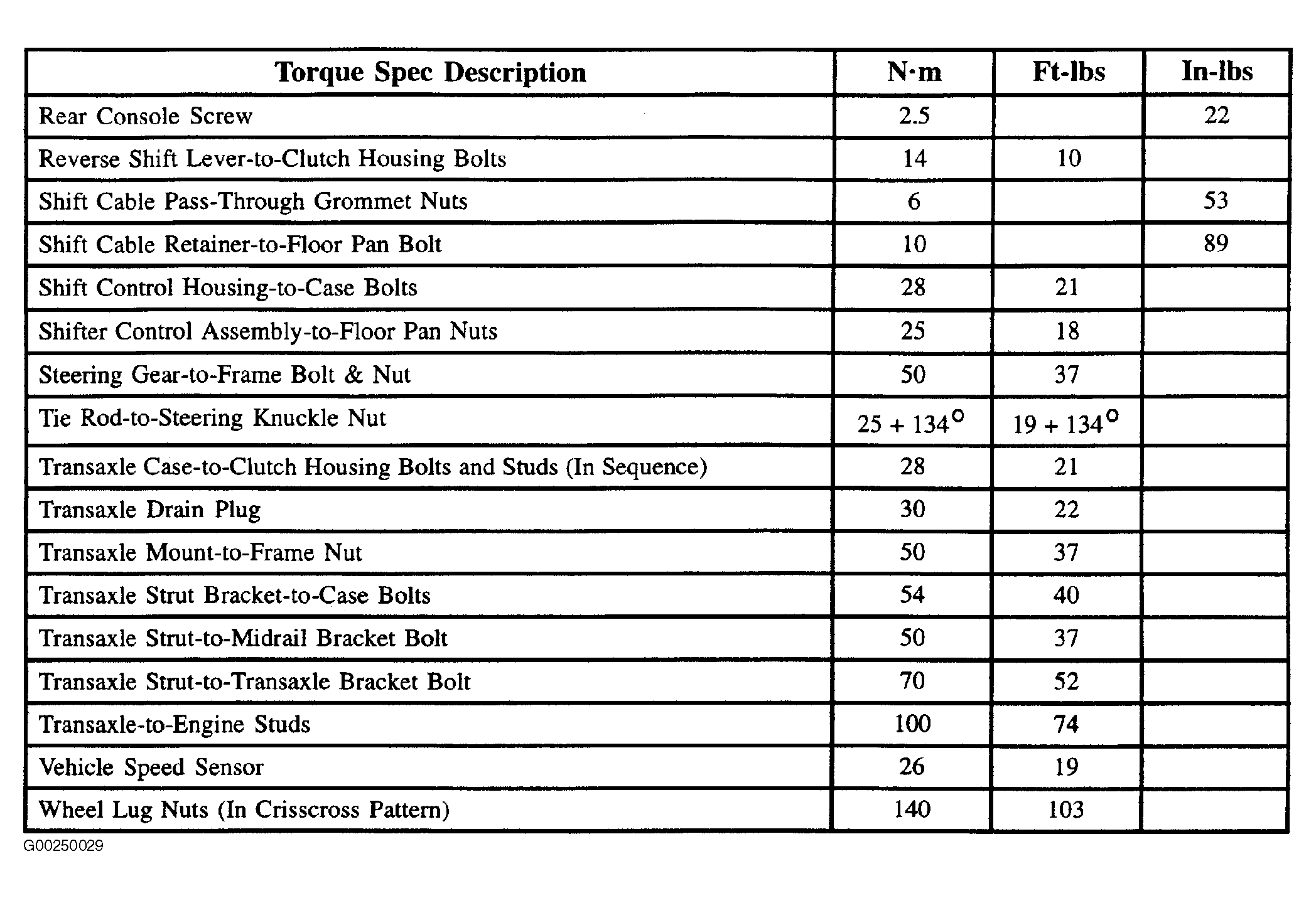

Fig 2: Manual Transaxle Torque Specifications (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
