Door Switch

Door Jamb Switch - Left Front:




Door Jamb Switch - Left Rear:




Door Jamb Switch - Right Front:

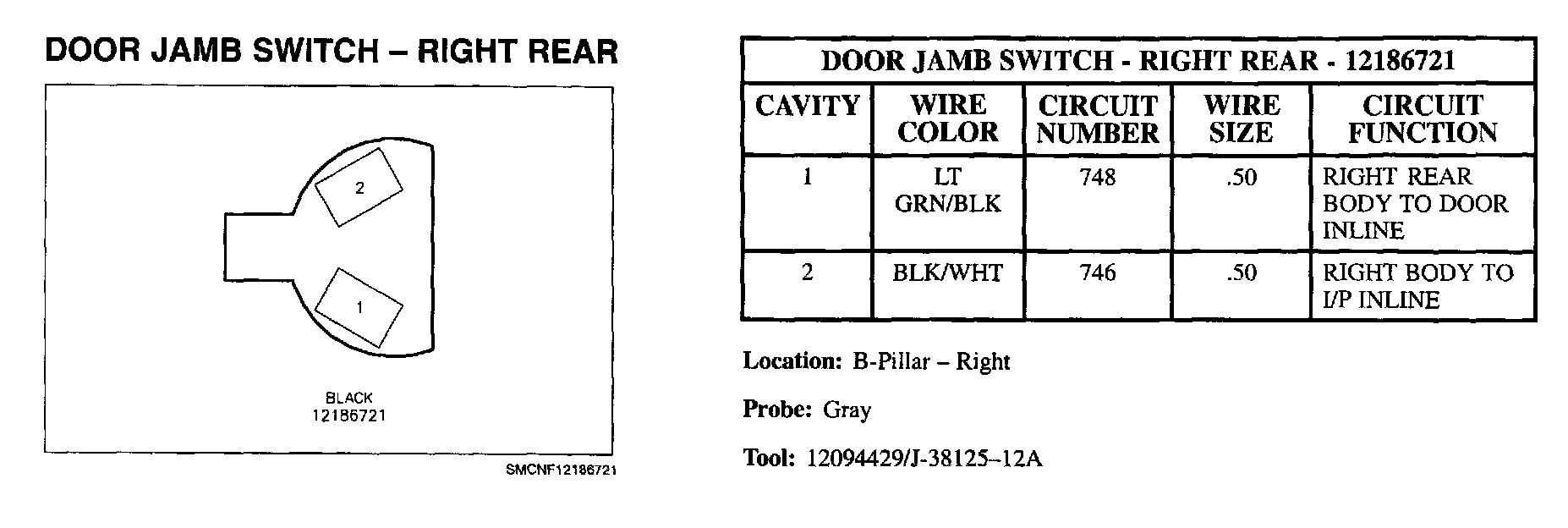

Door Jamb Switch - Right Rear:
