Keyless Entry

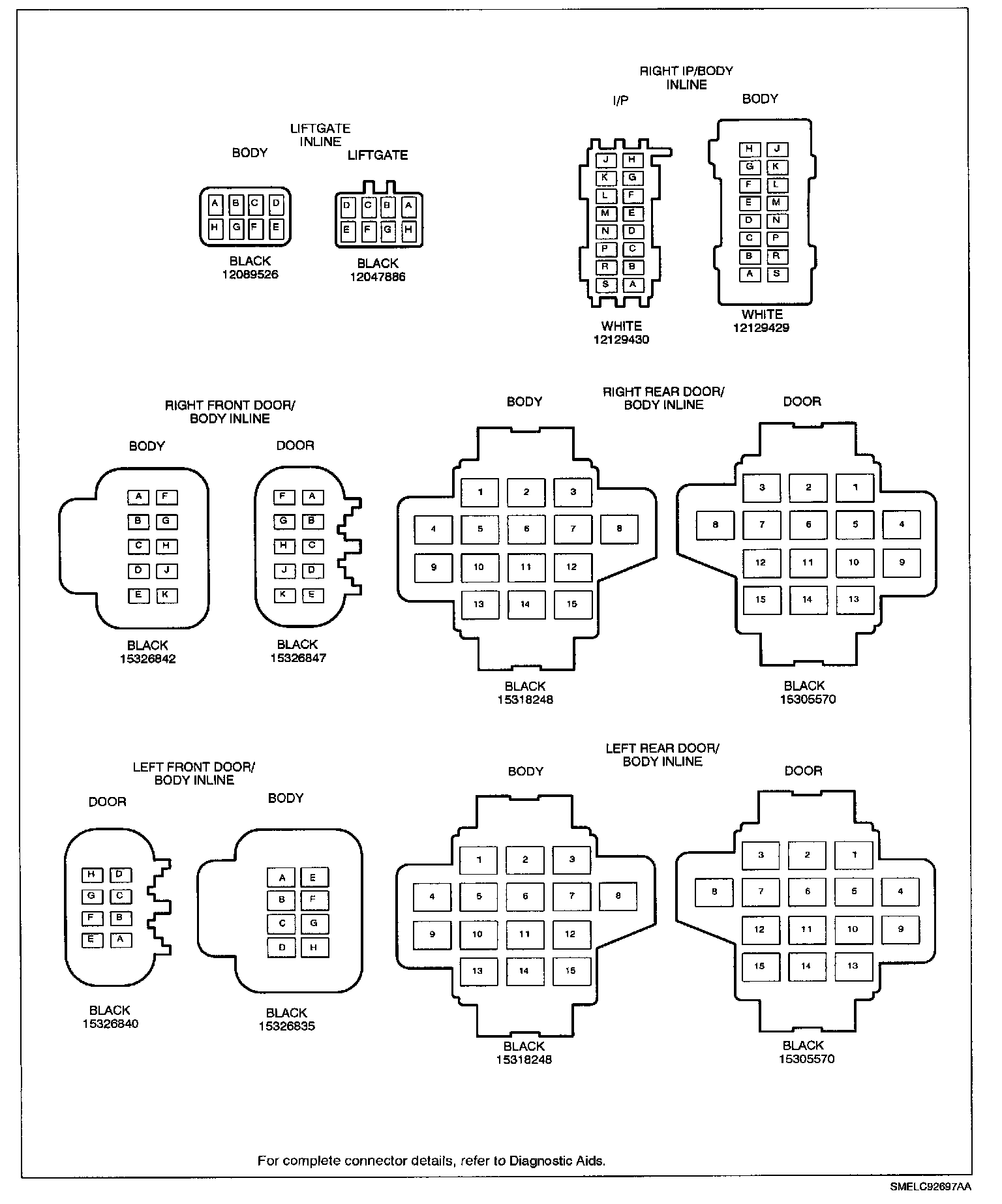

RKE/Security System Connector Face Views Part 1:



RKE/Security System Connector Face Views Part 2:
